112340 VESSELS/REACTORS
  • ITEM NO :  112340
  • QTY :  1
  • ALLOY :  S
  • GALLONS :  1300
  • DIA/WIDTH (FT'IN") :  4'0"
  • LENGTH (FT'IN") :  12'0"
  • SHELL PSI :  50
  • FULL VAC. Y/N :  Y
  • SHELL TEMP DEG. F :  250
  • V/H :  V
  • SHELL MATERIAL :  304LSS
  • CODE :  NB
  • WALL :  1/2"
  • AGITATED Y/N :  N
  • TOP HEAD :  DISHED
  • BOTTOM HEAD :  DISHED
Technical Drawings/Spec Sheets
View Documents Documents
View Documents Documents
View Documents Documents
View Documents Documents
View Documents Documents
View Documents Documents
View Documents Documents
View Documents Documents
View Documents Documents
View Documents Documents
View Documents Documents
View Documents Documents
View Documents Documents
ADDITIONAL DESCRIPTION

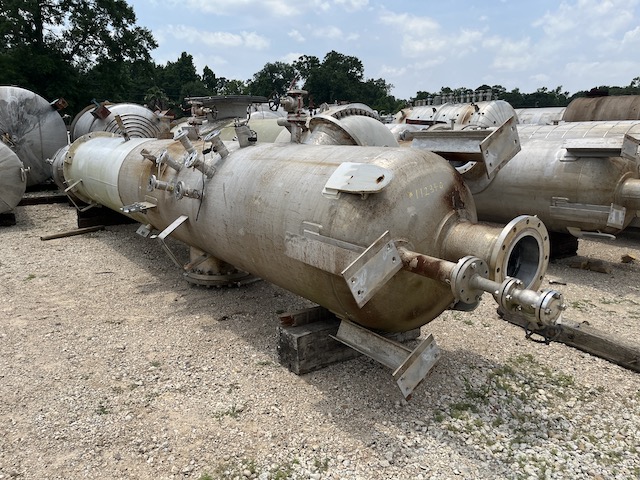

Used 1300 gallon 304L Stainless Steel Vertical Reactor. Mfg. by Sungjin Geotec in 2012. 4'0" diameter x 12'0" T/T. 50FV psi @ 250 deg. F. Dished Heads. On 12' Skirt Support. 1/2" Wall thickness. Previous Service: AGR Regenerator Reflux Drum.
