114664 VESSELS/REACTORS
-
ITEM NO : 114664 -
QTY : 1 -
ALLOY : S -
GALLONS : 19570 -
DIA/WIDTH (FT'IN") : 12'6" -
LENGTH (FT'IN") : 17'9" -
SHELL PSI : 50 -
FULL VAC. Y/N : Y -
SHELL TEMP DEG. F : 306 -
V/H : V -
SHELL MATERIAL : 304LSS -
CODE : NB -
WALL : .5" -
JKT/COIL PSI : 170 -
JKT/COIL TEMP DEG. F : 380 -
JKT/COIL MATERIAL : 316LSS -
AGITATED Y/N : Y -
AGITATOR HP : 3 -
AGITATOR MATERIAL : SS -
TOP HEAD : DISHED -
BOTTOM HEAD : DISHED
Technical Drawings/Spec Sheets
YouTube Videos
| Unused Vessel Link | Unused Vessel |
ADDITIONAL DESCRIPTION

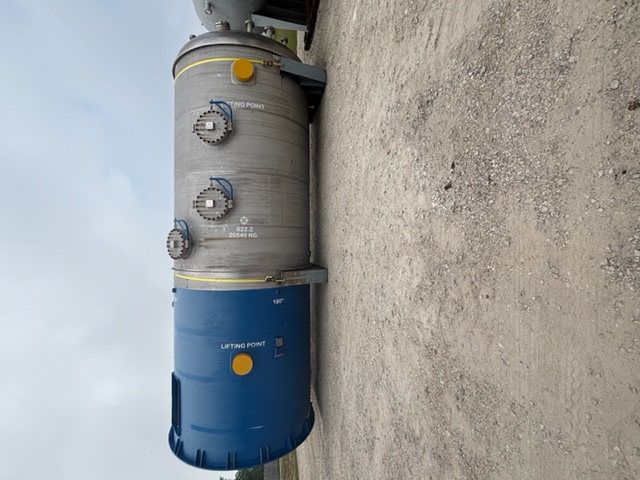

Unused 19,570 gallon vertical 304L stainless steel vessel with 316L stainless steel coil. Mfg. by Equipromex (Mexico) in 2022. Continuous bleacher. 12'6" diameter x 17'9" T/T. On 14'0" skirt support. Wall thickness .50". 2:1 elliptical dished heads .409" thick. Agitator: Mfg. by Chemineer Model #22GTN-3, 3 hp, 1200 rpm input, 30 rpm output, 230/460 volts.
