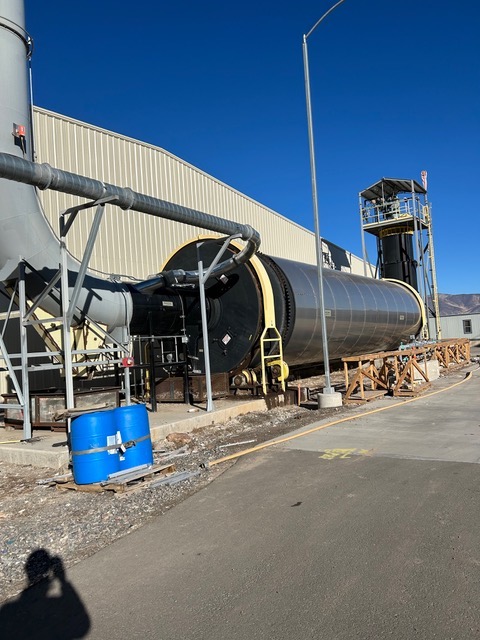

One (1) Z8 Rotary Drum Mfg. by Earth Care. Mfg. by Earth Care in 2019. Model 130-600. 13' diameter x 60' long heavy-duty industrial dryer. The rotary drum is a reverse flow 8-zone patented rotary dryer with two (2) distinct single and triple pass zones for more efficient drying by impinging air/material technology in an increasing velocity design for material separation, evacuation, minimization of VOC-formation and product degradation. The drum utilizes two (2) AISI 1045 forged and rolled steel tracks, wedged to the drum¿s outer shell with an adjustable wedge design. Securing the drum tracks in this manner provides air space between drum¿s outer shell and inside face of the track, limiting overheating of track and its¿ failure by reducing thermal and dynamic stresses. The drum is fitted with a full-tooth shell-mounted sprocket, cut to match a 4.063¿ pitch engineering chain. The sprocket is bolted to shell-mounted angles. The drum¿s outer shell is cladded with 16-gauge, AISI 304L stainless steel sheeting to provide a 2-inch insulating air-space between the drum¿s outer shell and stainless steel cladding. The dryer Includes: One (1) Saddle Drum Drive Model DB1340, consisting of shaft-mount reducer, 40 HP motor and belt drive, drive sprocket, shaft and bearing assembly, engineering chain, chain guide assembly, idler sprocket and chain adjustment plate, drive shaft and bearing assembly and lubricator. One (1) set of front and rear Trunnion Bases, Model TB130. Complete with machined trunnion wheels, bearings & shafts. One (1) Natural Gas Fired Burner System , Mfg. by Earth Care, rated for a nominal heat capacity of 36 MMBtu/hr. One (1) Dryer Air Heating Furnace to transfer controlled-temperature gases from the burner into the rotary dryer. One (1) Infeed rotary airlock, flex tip rotor, complete with heavy-duty bearings, 7.5 HP motor and drive and One (1) Infeed Screw Conveyor. One (1) Drum Inlet End plate, complete with furnace connection, water deluge, infeed screw connection or infeed chute, access door and sight port. One (1) set, High-Efficiency Quad-Pack Cyclone Collectors. One (1) Collector Discharge Airlock. One (1) Inert polishing duct/seal section. One (1) Dryer Exhaust Fan. One (1) Dryer Discharge Reversing Screw Conveyor. One (1) Flamex Spark Detection and Suppression System, with 2 zones of protection.
