115261 CENTRIFUGES
-
ITEM NO : 115261 -
QTY : 1 -
ALLOY : S -
TYPE : DISC -
MATERIAL : SS -
MANUFACTURER : ALFA LAVAL -
MODEL : BRPX-714HGV-34C -
DRIVER TYPE : MOTOR -
HP : 22KW -
BOWL SPEED : 5119 -
PREVIOUS SERVICE : BREWERY
Technical Drawings/Spec Sheets
ADDITIONAL DESCRIPTION

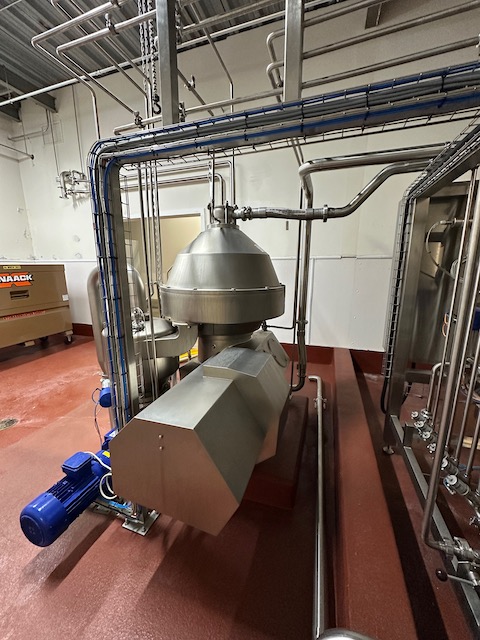

Used BREW 350 Alfa Laval self-cleaning disc stack centrifuge. Manufactured by Alfa Laval (Sweden). Model #BRPX-714HGV-34C. Capacity 200BBL/hr. Max density of feed: 1100 kg/m3. Max density of Sediment: 1247 kg,m3. Max density of operating liquid: 1000 kg/m3. Max Bowl Speed 5119 RPM. 22kW motor 60Hz. CIP. Built 2022.
