115081 EXCHANGERS
  • ITEM NO :  115081
  • QTY :  1
  • ALLOY :  S
  • SQ.FT. :  634
  • MATERIAL (S) :  CS FRAME
  • MATERIAL (T) :  316SS PLATES
  • PSI (S) :  150
  • PSI (T) :  150
  • TEMP. DEG. F (S) :  350
  • TEMP. DEG. F (T) :  350
  • TUBE HOLES :  106 PLATES
  • V/H :  V
  • CODE :  NB
  • SHELL NOZZLES :  (2)8"
  • TUBE NOZZLES :  (2)8"
Technical Drawings/Spec Sheets
View Documents NB Papers
View Documents Plate & Frame Performance Specs & Drawing
View Documents Additional Information
ADDITIONAL DESCRIPTION

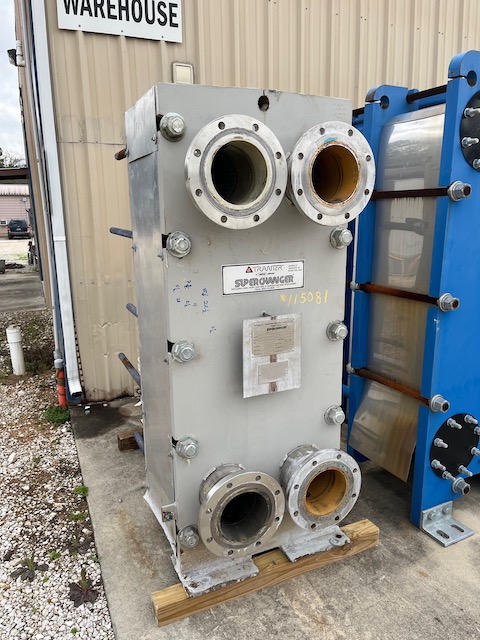

Used 634 sq. ft. Vertical Plate Exchanger. Mfg. by Tanter Superchanger in 2005. Model #UXP-060-M-6-UP-106, Carbon Steel Frame, 150 psi @ 350 deg. F. (106) 316 Stainless Steel Plates, 150 psi @ 350 deg. F. Previous Service: RX2208 & RX2209.
