114922 PUMPS-CENTRIFUGAL
  • ITEM NO :  114922
  • QTY :  1
  • ALLOY :  S
  • GPM :  464
  • FT HEAD :  158
  • CASE MATERIAL :  316SS
  • IMPELLER MATERIAL :  316SS
  • V/H :  H
  • MANUFACTURER :  DURCO (FLOWSERVE)
  • MODEL :  MARK III
  • SIZE :  4X3X10
  • DRIVER TYPE :  MOTOR
  • HP :  50
  • RPM :  3555
  • VOLTAGE :  460
Technical Drawings/Spec Sheets
View Documents Construction Data Sheet
View Documents Coupling Drawing
View Documents Cross Sectional Drawing
View Documents General Arrangement
View Documents Hydraulic Data Sheet
View Documents Mechanical Seal Drawing
View Documents Motor Outline Drawing
View Documents Motor Performance Data
View Documents Motor Wiring
View Documents Performance Curve
View Documents Reservoir Drawing
ADDITIONAL DESCRIPTION

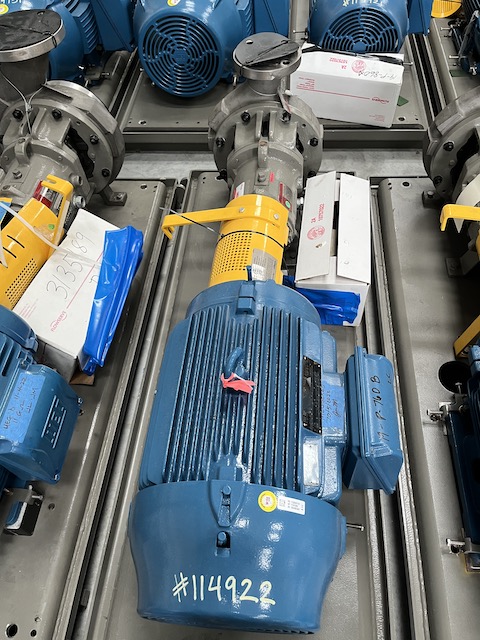

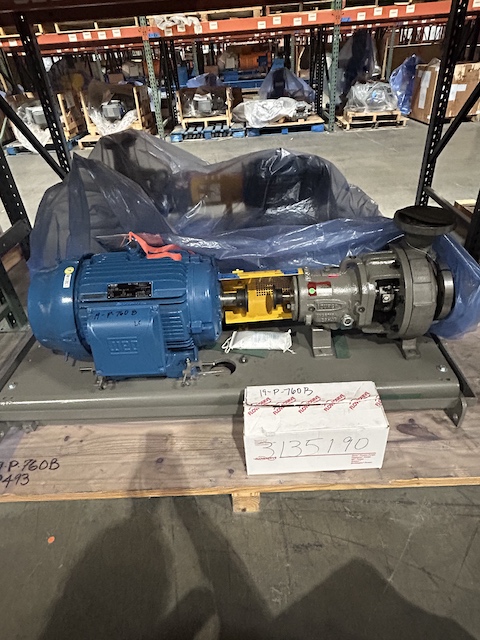

Unused Horizontal Centrifugal Pump. Oil Dryer Discharge Pump. Mfg. by Durco (Flowserve). Size 2K4x3-10RV 10.00, Type MK3 STD. MDP 275 psi @ 100 deg. F. 464 gpm @ 158' head. 250 deg. F. Casing: 316SS. Impeller: 316SS. 50 HP motor.
