114598 VESSELS/REACTORS
  • ITEM NO :  114598
  • QTY :  1
  • ALLOY :  S
  • GALLONS :  8189
  • DIA/WIDTH (FT'IN") :  9'0"
  • LENGTH (FT'IN") :  19'0"
  • SHELL PSI :  87
  • SHELL TEMP DEG. F :  399
  • V/H :  H
  • SHELL MATERIAL :  304LSS
  • CODE :  ASME U-STAMP
  • JKT/COIL PSI :  174
  • JKT/COIL TEMP DEG. F :  399
  • AGITATED Y/N :  N
  • TOP HEAD :  DISHED
  • BOTTOM HEAD :  DISHED
ADDITIONAL DESCRIPTION

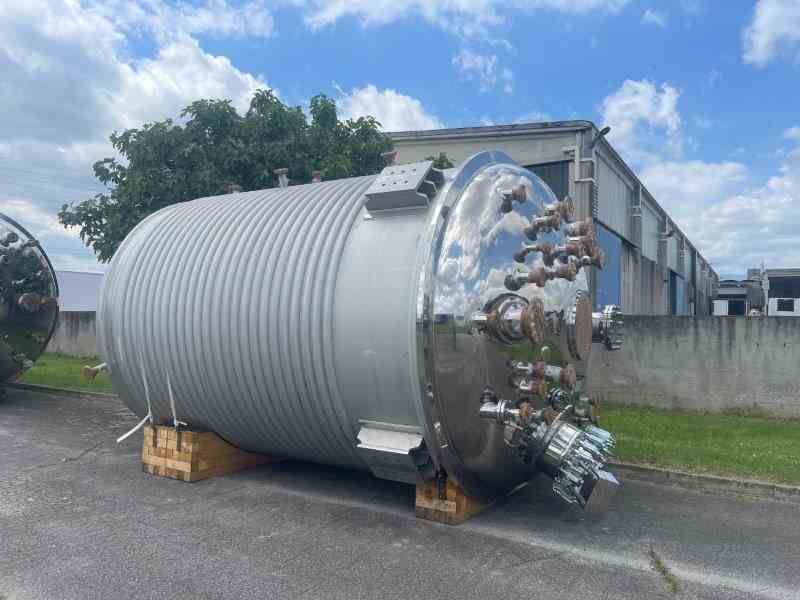

Unused 8,189 gallon 304L stainless steel reactor. Internal MAWP 87 psi @ 399°F. Halfpipe MAWP 174 psi @ 399°F. Half pipe on bottom, half on shell and bottom head. Sanitary polished internal and exterior top shell. Diameter 9.84 ft, height 19.03 ft. Certified ASME U-Stamp and PED (double certification). Ready to be equipped with agitator (top flange and internal baffles). Built in 2024.
