114392 VESSELS/REACTORS
  • ITEM NO :  114392
  • QTY :  1
  • ALLOY :  S
  • GALLONS :  379
  • DIA/WIDTH (FT'IN") :  3'4"
  • LENGTH (FT'IN") :  4'4"
  • SHELL PSI :  33
  • FULL VAC. Y/N :  N
  • SHELL TEMP DEG. F :  335
  • V/H :  V
  • SHELL MATERIAL :  304SS
  • CODE :  NB
  • WALL :  1/4"
  • JKT/COIL PSI :  90
  • JKT/COIL TEMP DEG. F :  335
  • JKT/COIL MATERIAL :  304SS
  • AGITATED Y/N :  N
  • TOP HEAD :  DISHED
  • BOTTOM HEAD :  DISHED
Technical Drawings/Spec Sheets
View Documents Drawings
View Documents NB Papers
View Documents Pressure Vessel Design Calculations
View Documents Jacket Re-rate
ADDITIONAL DESCRIPTION

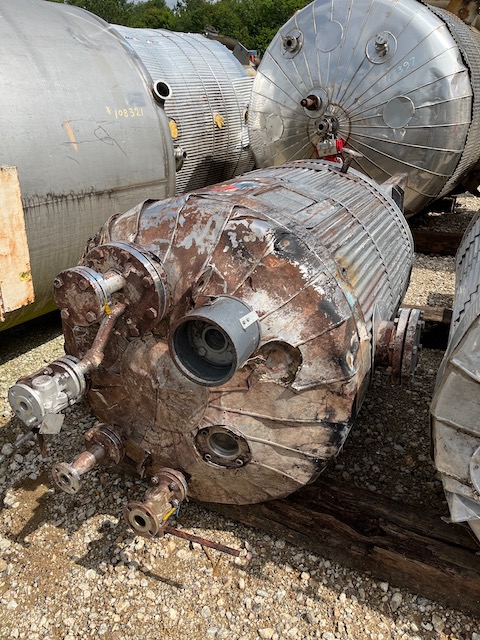

Used 379 gallon vertical 1-filtrate check tank. Mfg. by Alloy Fabricators in 1991. 3'4" diameter x 4'4" T/T. Shell: 304 stainless steel, 33 psi @ 335 deg. F. Jacket: 304 stainless steel, Re-rated to 90 psi @ 335 deg. F. 2" SCH. 10S half pipe on shell od and bottom head. Dished heads on leg supports.
