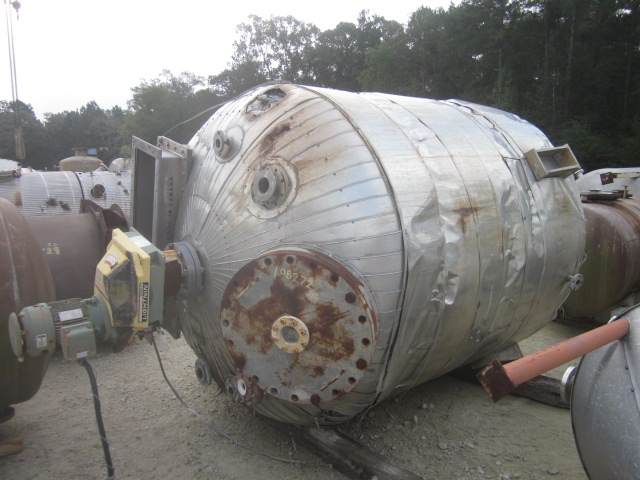

108272 VESSELS/REACTORS
  • ITEM NO :  108272
  • QTY :  1
  • ALLOY :  A
  • GALLONS :  2200
  • DIA/WIDTH (FT'IN") :  6'6"
  • LENGTH (FT'IN") :  6'10"
  • SHELL PSI :  25
  • SHELL TEMP DEG. F :  450
  • V/H :  V
  • SHELL MATERIAL :  TITANIUM GR. 2
  • CODE :  NB
  • WALL :  3/8"
  • JKT/COIL PSI :  150FV
  • JKT/COIL TEMP DEG. F :  450
  • JKT/COIL MATERIAL :  TITANIUM GR. 2
  • AGITATED Y/N :  Y
  • AGITATOR HP :  7.5
  • TOP HEAD :  DISHED
  • BOTTOM HEAD :  DISHED
Technical Drawings/Spec Sheets ( Requires: Get Acrobat Reader  )
View Documents CODE PAPERS
View Documents DRAWINGS
ADDITIONAL DESCRIPTION
PREVIOUSLY UTILIZED IN VITAMIN "C" PRODUCTION; PREVIOUS-T1-2 CRUDE DISSOLVING KETTLE; MFG. BY ASTROCOSMOS METALLURGICAL IN 1997; (4) LEG SUPPORTS; LIGHTNIN AGITATOR; (4) SIDE WALL BAFFLES; 3.5" HALF PIPE COIL JACKET ON SHELL OD & BOTTOM HEAD (406 TOTAL LINEAR FEET); NOZZLES: TOP (2)2", (3)3", 24" MANWA; 12" X 40" OPENING; SHELL 1.5", 2" JACKET, 3" JACKET; BOTTOM 2" JACKET, 3" JACKET 4"; (4) LEGS @ Y2C4;
