100269 EXCHANGERS
  • ITEM NO :  100269
  • QTY :  1
  • ALLOY :  C
  • SQ.FT. :  7498
  • MATERIAL (S) :  CS
  • MATERIAL (T) :  CS
  • MATERIAL (H) :  CS
  • PSI (S) :  148
  • PSI (T) :  148
  • TEMP. DEG. F (S) :  400
  • TEMP. DEG. F (T) :  400
  • TUBE DIAMETER IN" :  .75
  • TUBE LENGTH FT'IN" :  20'0"
  • TUBE HOLES :  1950
  • TUBE PITCH :  15/16" TRI
  • TUBE WALL :  .083"
  • PASSES (S) :  1
  • PASSES (T) :  1
  • V/H :  V
  • CODE :  NB
  • TEMA TYPE :  AEM
  • SHELL NOZZLES :  6", 8"
  • TUBE NOZZLES :  8", 16"
  • NO. OF BAFFLES :  9
  • BAFFLE SPACING :  23"
  • SHELL DIAMETER FT'IN" :  3'10"
  • O.A.L FT'IN" :  26'4"
Technical Drawings/Spec Sheets
View Documents Bundle Replacement and Shell Repair
View Documents Drawings
View Documents Drawings
View Documents Drawings
View Documents Drawings
View Documents Drawings
ADDITIONAL DESCRIPTION

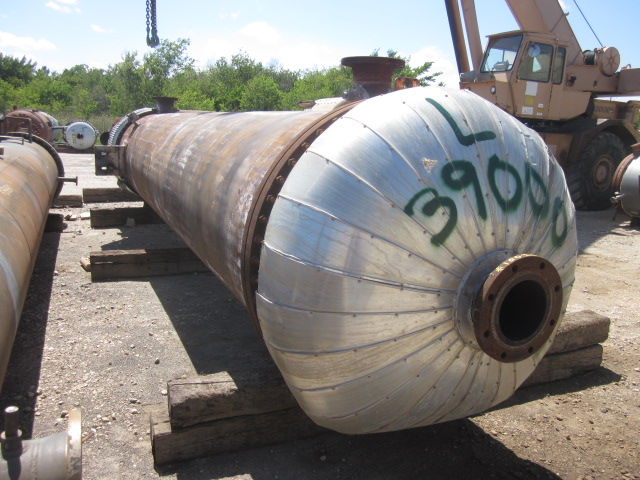

2nd Effect Evaporator Reboiler. 7498 sq. ft. carbon steel exchanger. Mfg. by Exell in 1992, bundle replaced and shell by Industrial Equipment in 2004.
