114713 EXCHANGERS
  • ITEM NO :  114713
  • QTY :  1
  • ALLOY :  C
  • SQ.FT. :  569
  • MATERIAL (S) :  CS
  • MATERIAL (T) :  CS
  • MATERIAL (H) :  CS
  • PSI (S) :  654FV
  • PSI (T) :  556FV
  • TEMP. DEG. F (S) :  300
  • TEMP. DEG. F (T) :  300
  • TUBE LENGTH FT'IN" :  17'6"
  • V/H :  H
  • CODE :  NB
  • TEMA TYPE :  AEU
  • SHELL DIAMETER FT'IN" :  1'3"
Technical Drawings/Spec Sheets
View Documents Drawings
View Documents U-1
View Documents Drawings
ADDITIONAL DESCRIPTION

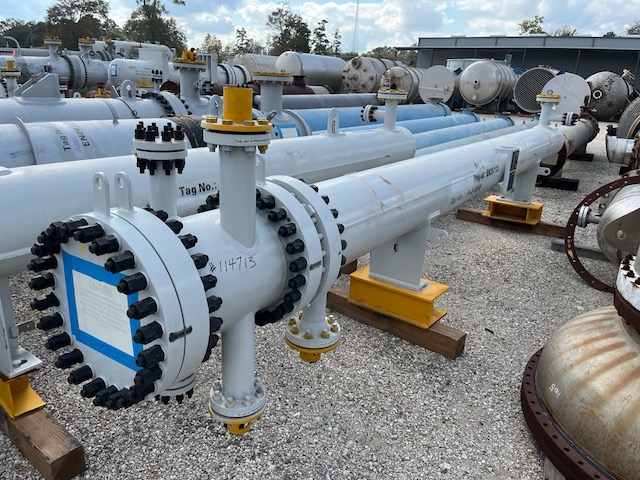

Unused 569 sq. ft. horizontal heat exchanger. Mfg. by Wuxi Chemical Equipment in 2023. 1.625 Design duty (MMBTU/Hr). Shell Design Rating: 200/FV psig @ 300 deg. F. Tube Design Rating: 155 psig @ 300 deg. F. Shell mawp 654.4/FV psig @ 300 deg. F. Tube mawp 556.91/FV psig @ 300 deg. F. 5.25" X 210". HGU condensate trim cooler (for HGU feed). Under Nitrogen Purged.
