114766 EXCHANGERS
  • ITEM NO :  114766
  • QTY :  1
  • ALLOY :  S
  • SQ.FT. :  96
  • MATERIAL (S) :  CS
  • MATERIAL (T) :  304SS
  • MATERIAL (H) :  304LSS
  • PSI (S) :  150
  • PSI (T) :  150FV
  • TEMP. DEG. F (S) :  212
  • TEMP. DEG. F (T) :  400
  • TUBE LENGTH FT'IN" :  6'0"
  • V/H :  V
  • CODE :  NB
  • TEMA TYPE :  BEM
  • SHELL DIAMETER FT'IN" :  10"
Technical Drawings/Spec Sheets
View Documents (no title)
View Documents (no title)
View Documents (no title)
View Documents (no title)
View Documents (no title)
View Documents (no title)
ADDITIONAL DESCRIPTION

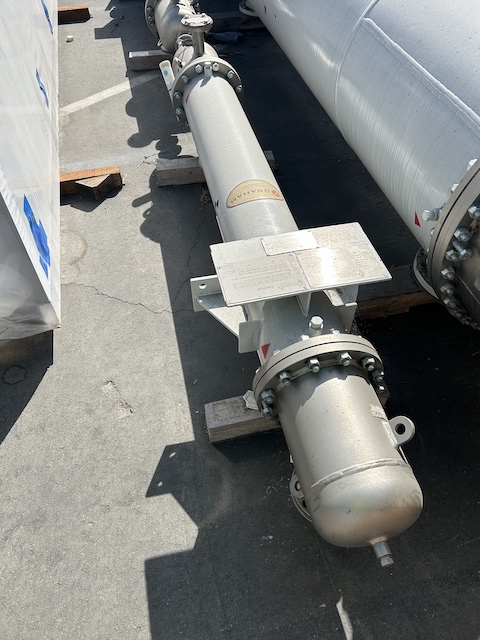

Unused 96 sq. ft. vertical heat exchanger. 0.4 Design duty (MMBTU/Hr). Mfg.by Alliance Fab (Graham) in 2022. Shell: 150 psi @ 212 deg. F. Tubes: 150FV psi @ 400 deg. F.; 10" x 72". Secondary Surface Condenser. Under Nitrogen Purge
