115420 EXCHANGERS
  • ITEM NO :  115420
  • QTY :  1
  • ALLOY :  S
  • SQ.FT. :  1118
  • MATERIAL (T) :  316SS
  • PSI (S) :  580
  • TEMP. DEG. F (S) :  212
  • TUBE HOLES :  126 PLATES
  • TUBE WALL :  0.8mm PLATE THICKNESS
  • CODE :  NB
Technical Drawings/Spec Sheets
View Documents Drawing, U-1 and Misc Info
ADDITIONAL DESCRIPTION

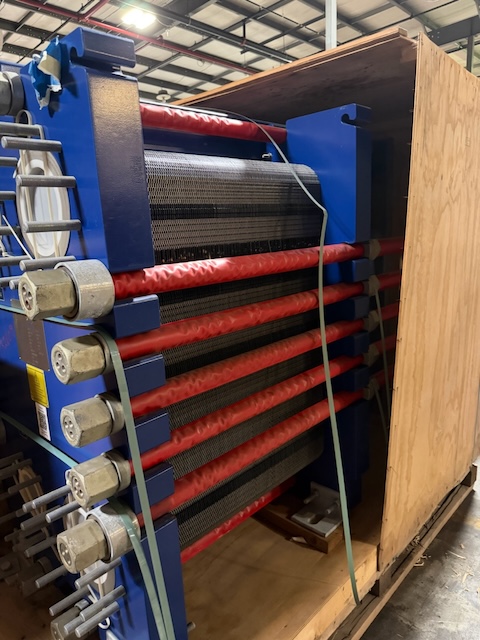

Unused 1118 sq. ft. (103.90 m2) 316 stainless steel plate exchanger. Mfg. by Alfa Laval in 2023. 580 psi @ 212°F. Model TK20-BWFX. EPDMC gasket material. 126 plates 0.8mm plate thickness. (2)6" primary inlet & outlet. (2)8" secondary inlet and outlet.
