115299 VESSELS/REACTORS
  • ITEM NO :  115299
  • QTY :  1
  • ALLOY :  S
  • GALLONS :  1500
  • DIA/WIDTH (FT'IN") :  3'6"
  • LENGTH (FT'IN") :  5'0"
  • SHELL PSI :  45
  • FULL VAC. Y/N :  Y
  • SHELL TEMP DEG. F :  302
  • V/H :  V
  • SHELL MATERIAL :  316LSS
  • CODE :  NB
  • WALL :  3/16"
  • AGITATED Y/N :  N
  • TOP HEAD :  DISHED
  • BOTTOM HEAD :  DISHED
Technical Drawings/Spec Sheets
View Documents Drawings
ADDITIONAL DESCRIPTION

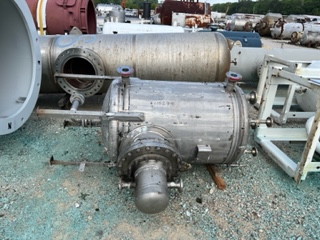

Used 1500 gallon vertical 316L stainless steel vessel. Mfg. by Coastal Industrial Fabricators in 2006. 3'6" diameter x 5'0" T/T. 45FV psi @ 302°F. 3/16" thick shell wall, .1680" min. thick heads. Dished Heads. 24" side manway, 3" center bottom outlet. On (4) leg supports. Includes: Bayonet cooler mounted in 12" side nozzle.
