114346 VESSELS/REACTORS
  • ITEM NO :  114346
  • QTY :  1
  • ALLOY :  S
  • GALLONS :  6000
  • DIA/WIDTH (FT'IN") :  8'6"
  • LENGTH (FT'IN") :  12'0"
  • SHELL PSI :  100
  • FULL VAC. Y/N :  Y
  • SHELL TEMP DEG. F :  450
  • V/H :  V
  • SHELL MATERIAL :  304SS
  • CODE :  NB
  • WALL :  1/2"
  • JKT/COIL PSI :  150FV
  • JKT/COIL TEMP DEG. F :  375
  • JKT/COIL MATERIAL :  304SS
  • AGITATED Y/N :  N
  • TOP HEAD :  DISHED
  • BOTTOM HEAD :  DISHED
Technical Drawings/Spec Sheets
View Documents Drawing, NB Paper, Specs
View Documents Design Calculations
ADDITIONAL DESCRIPTION

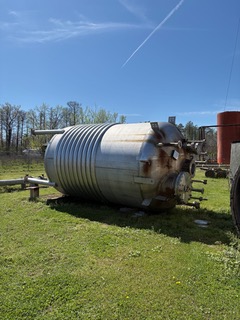

Used Roben Mfg 6,000 Gallon 304 Stainless Steel Jacketed Reactor 100 PSI, Half-Pipe Coil (2015). 102" diameter X 144" high straight side. Internal rated 100/FV @ -25 to 450 F. Half pipe coiled jacket rated 150/FV @ 375 F. Dished heads. Top Fittings: 24" manway with sight glass. 12" agitator nozzle (No Agitator or Drive), (2) 1.5", (3) 2", (3) 3", (1) 4", and (1) 8". 6" center bottom outlet and One 1" offset bottom head thermocouple. Has (4) internal baffles and supports stands for a diptube. Mounted on (4) stainless steel legs. Built 2015.
