115019 TANKS
  • ITEM NO :  115019
  • QTY :  1
  • ALLOY :  S
  • GALLONS :  7145
  • DIA/WIDTH (FT'IN") :  10'0"
  • LENGTH (FT'IN") :  10'0"
  • SHELL PSI :  ATM
  • FULL VAC. Y/N :  N
  • V/H :  V
  • SHELL MATERIAL :  304LSS
  • CODE :  NO
  • AGITATED Y/N :  N
  • TOP HEAD :  DISHED
  • BOTTOM HEAD :  DISHED
Technical Drawings/Spec Sheets
View Documents (no title)
ADDITIONAL DESCRIPTION

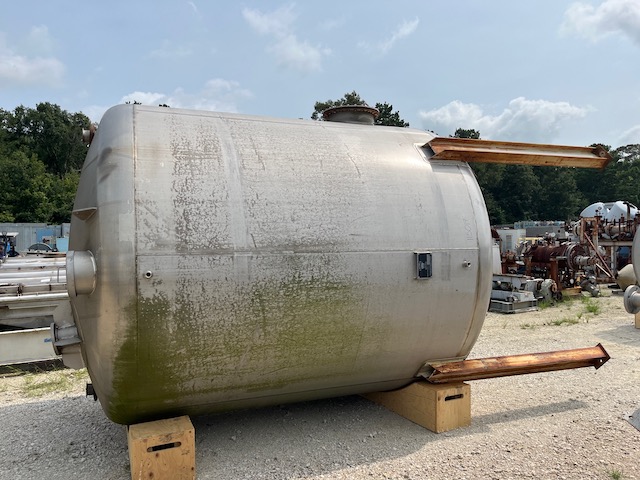

Unused 7145 gallons (955 cu.ft.) Vertical 304L Stainless Steel single wall tank. Manufactured by Crown Iron Works in 2007. Dished Heads, Leg Supports, Rated Atmospheric. 18'10" Overall Length. 20" side manway, 12" top stub pipe opening, set up for 6" flange mount top agitation, 6" CBO.
