114911 PUMPS-CENTRIFUGAL
  • ITEM NO :  114911
  • QTY :  1
  • ALLOY :  C
  • GPM :  523
  • FT HEAD :  168
  • PUMP CASE RPM :  1040
  • CASE MATERIAL :  HC600
  • IMPELLER MATERIAL :  HC600
  • V/H :  H
  • MANUFACTURER :  DURCO (FLOWSERVE)
  • MODEL :  4M223
  • DRIVER TYPE :  MOTOR
  • HP :  75
  • RPM :  1184
  • VOLTAGE :  460
Technical Drawings/Spec Sheets
View Documents General Arrangement
View Documents Pump Cross Sectional Drawing
View Documents Motor Outline Drawing
View Documents Motor Wiring Diagram
View Documents Mechanical Seal Drawing
View Documents Coupling Drawing
View Documents Material Certification
View Documents Motor Performance Data
View Documents Performance Test Report
ADDITIONAL DESCRIPTION

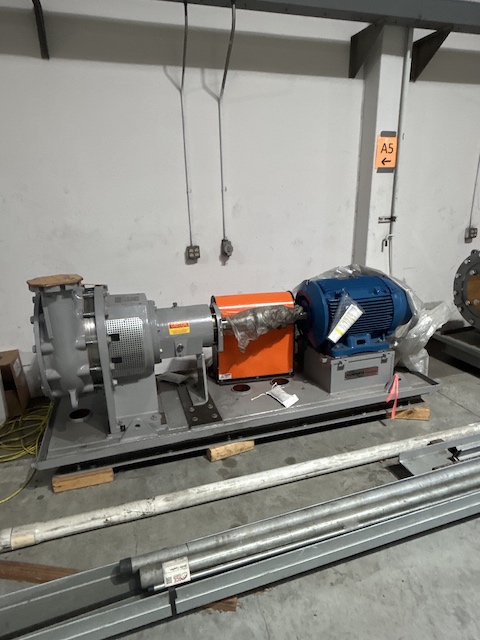

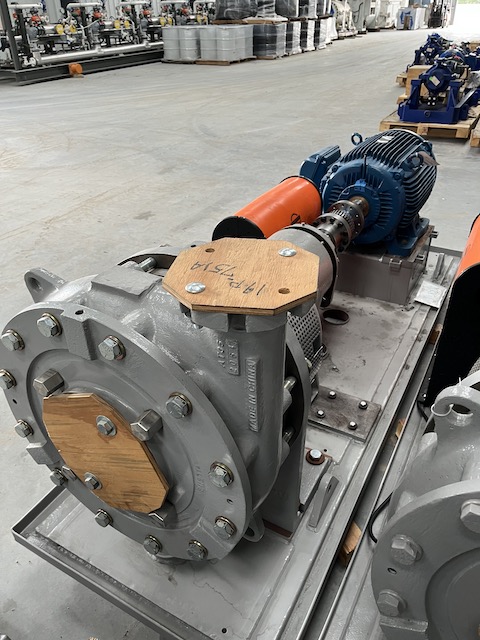

Unused Horizontal Centrifugal Pump. PE Maturator Feed Pump. Mfg. by Durco (Flowserve(. 523 gpm @ 168' head. 306 deg. F. Casing: HC600. Impeller: HC600. 75 HP motor.
