114953 PUMPS-CENTRIFUGAL
  • ITEM NO :  114953
  • QTY :  1
  • ALLOY :  S
  • GPM :  445
  • FT HEAD :  92
  • CASE MATERIAL :  316SS
  • IMPELLER MATERIAL :  CD4M
  • V/H :  H
  • MANUFACTURER :  DURCO (FLOWSERVE)
  • MODEL :  MARK III
  • SIZE :  4X3X10
  • DRIVER TYPE :  MOTOR
  • HP :  60
  • RPM :  3550
  • VOLTAGE :  460
Technical Drawings/Spec Sheets
View Documents Cross Sectional Drawing
View Documents Performance Curve
View Documents Hydraulic Data Sheet
View Documents Construction Data Sheet
View Documents General Arrangement Drawing
View Documents Coupling Drawing
View Documents Mechanical Seal Drawing
View Documents Motor Outline Drawing
View Documents Motor Performance Data-Curve
View Documents Motor Wiring Diagram
View Documents Reservoir Drawing
View Documents Material Certificate of Compliance
View Documents Certificate of Hydrostatic Test
ADDITIONAL DESCRIPTION

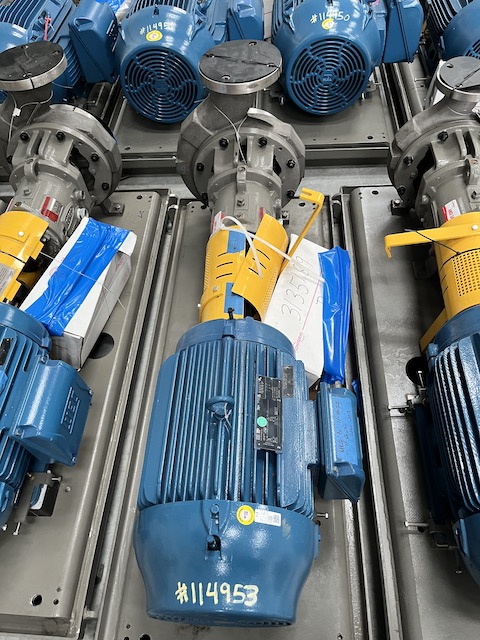

Unused Horizontal Centrifugal Pump. Silica Reactor Discharge Pump. Mfg. by Durco (Flowserve). 445 gpm @ 92' head. Size 2K4x3-100P-8.88. Type MK3 STD. MDP 275 psi @ 100 deg. F. 306 deg. F. Casing: 316SS. Impeller: CD4M. 60 HP motor.
