114950 PUMPS-CENTRIFUGAL
  • ITEM NO :  114950
  • QTY :  1
  • ALLOY :  S
  • GPM :  466
  • FT HEAD :  245
  • CASE MATERIAL :  316SS
  • IMPELLER MATERIAL :  316SS
  • V/H :  H
  • MANUFACTURER :  DURCO (FLOWSERVE)
  • MODEL :  MARK III
  • SIZE :  4X3X10
  • DRIVER TYPE :  MOTOR
  • HP :  60
  • RPM :  3550
  • VOLTAGE :  460
Technical Drawings/Spec Sheets
View Documents Cross Sectional Drawing
View Documents Performance Curve
View Documents Hydraulic Data Sheet
View Documents Coupling Drawing
View Documents Mechanical Seal Drawing
View Documents Motor Outline Drawing
View Documents Motor Performance Data
View Documents Motor Wiring Diagram
ADDITIONAL DESCRIPTION

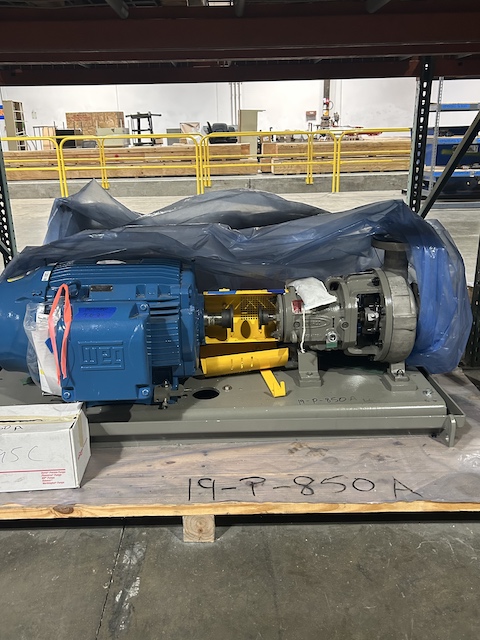

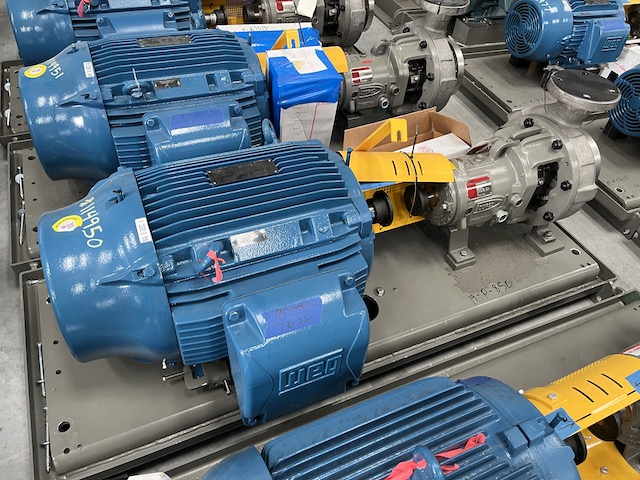

Unused Horizontal Centrifugal Pump. Acid Reactor Discharge Pump. Mfg. by Durco (Flowserve). 466 gpm @ 245' head. Size 2K4x3-10RV-8.13. Type MK3-STD. MDP 275 psi @ 100 deg. F. 248 deg. F. Casing: 316SS. Impeller: 316SS. 60 HP motor.
