114794 PUMPS-CENTRIFUGAL
  • ITEM NO :  114794
  • QTY :  1
  • ALLOY :  C
  • GPM :  100
  • FT HEAD :  222
  • PUMP CASE RPM :  3520
  • CASE MATERIAL :  CS
  • IMPELLER MATERIAL :  12 Cr
  • V/H :  H
  • MANUFACTURER :  SULZER
  • MODEL :  OHH
  • SIZE :  3X1.5X8
  • DRIVER TYPE :  MOTOR
  • HP :  15
  • RPM :  3520
  • VOLTAGE :  460
Technical Drawings/Spec Sheets
View Documents Aux-Piping
View Documents Coupling
View Documents Curves
View Documents Data Sheets
View Documents Mechanical Seal
View Documents Motor Data
View Documents Motor-GA
View Documents Motor Nameplate
View Documents Performance Data
View Documents Pump General Arrangement
View Documents Pump Nameplate
ADDITIONAL DESCRIPTION

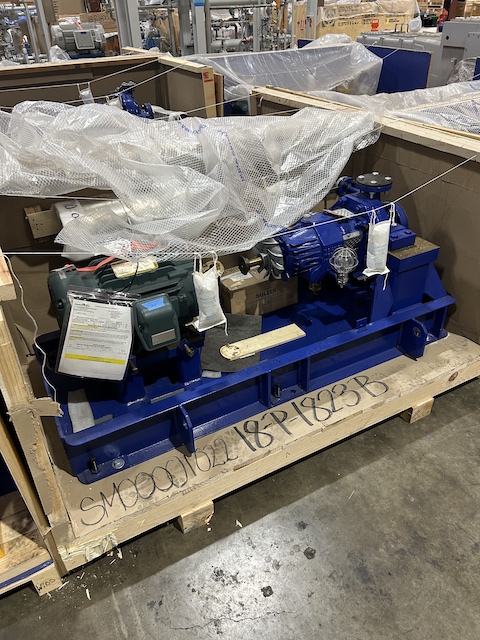

Unused Centrifugal Pump. CARB Diesel Blending Pump. Mfg. by Sulzer. Size 1.5x3x8-1. 100 gpm @ 222' head. 705 psi @ 160 deg. F. Casing CS. Impeller 12 Cr. With 15 hp motor.
