114714 EXCHANGERS
  • ITEM NO :  114714
  • QTY :  1
  • ALLOY :  S
  • SQ.FT. :  1055
  • MATERIAL (S) :  CS
  • MATERIAL (T) :  DUPLEX 2205
  • MATERIAL (H) :  CS
  • PSI (S) :  527FV
  • PSI (T) :  379FV
  • TEMP. DEG. F (S) :  480
  • TEMP. DEG. F (T) :  380
  • TUBE LENGTH FT'IN" :  16'11"
  • V/H :  V
  • CODE :  NB
  • TEMA TYPE :  BEM
  • SHELL DIAMETER FT'IN" :  1'11"
Technical Drawings/Spec Sheets
View Documents (no title)
View Documents (no title)
View Documents (no title)
View Documents (no title)
View Documents (no title)
View Documents (no title)
ADDITIONAL DESCRIPTION

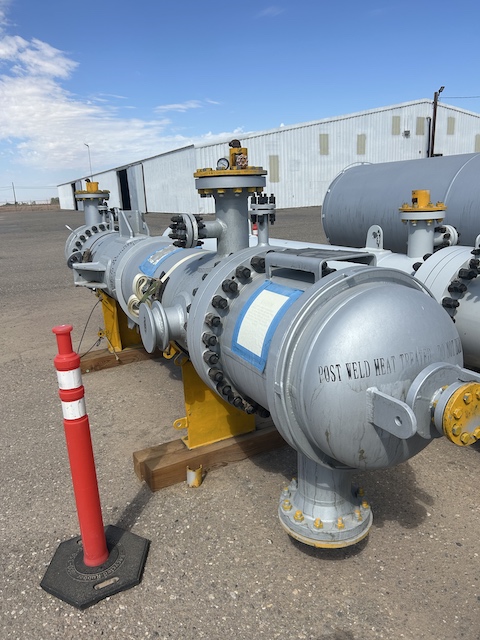

Unused 1055 sq. ft. heat exchanger. Mfg. by Wuxi Chemical Equipment in 2023. 6.214 Design duty (MMBTU/Hr). Shell Design Rating: 232/FV psig @ 480 deg. F. Tube Design Rating: 200/FV psig @ 380 deg. F. Shell mawp 527.5/FV psig @ 430 deg. F. Tube mawp 379.6/FV psig @ 380 deg. F. 23.5" X 16'11". Acid gas stripper reboiler. Under Nitrogen Purged.
