114679 TANKS
  • ITEM NO :  114679
  • QTY :  1
  • ALLOY :  S
  • GALLONS :  28216
  • DIA/WIDTH (FT'IN") :  11'6"
  • LENGTH (FT'IN") :  32'10"
  • SHELL PSI :  ATMOS
  • FULL VAC. Y/N :  N
  • SHELL TEMP DEG. F :  248
  • V/H :  V
  • SHELL MATERIAL :  304LSS
  • CODE :  COIL ASME CODED
  • JKT/COIL PSI :  87FV
  • JKT/COIL TEMP DEG. F :  380
  • JKT/COIL MATERIAL :  304SS
  • AGITATED Y/N :  Y
  • AGITATOR HP :  7.5
  • AGITATOR MATERIAL :  SS
  • TOP HEAD :  DISHED
  • BOTTOM HEAD :  DISHED
Technical Drawings/Spec Sheets
View Documents (no title)
View Documents (no title)
View Documents (no title)
View Documents (no title)
View Documents (no title)
ADDITIONAL DESCRIPTION

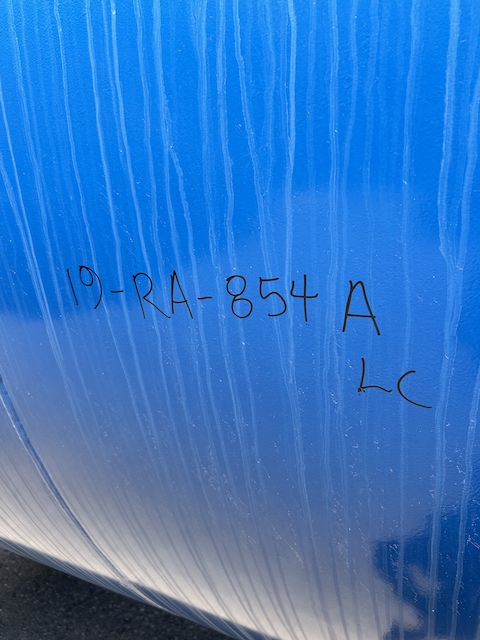

Unused 28,216 gallon vertical 304L stainless steel vessel with 304 stainless steel steam coil. Enzyme reactor. Agitated and External coils on bottom head. 11'6" diameter x 32'10" T/T. Mfg. by Equipromex (Mexico) in 2022. Dished heads. On 11'0" skirt support. Agitator: Mfg. by Chemineer Model #23GTL-7.5, 7.5 hp, 1800 rpm input, 16.5 rpm output, 230/460 volts.
