114650 TANKS
  • ITEM NO :  114650
  • QTY :  1
  • ALLOY :  C
  • GALLONS :  2750
  • DIA/WIDTH (FT'IN") :  7'0"
  • LENGTH (FT'IN") :  9'0"
  • SHELL PSI :  ATMOS
  • FULL VAC. Y/N :  N
  • SHELL TEMP DEG. F :  248
  • V/H :  V
  • SHELL MATERIAL :  CS
  • CODE :  NO
  • AGITATED Y/N :  Y
  • AGITATOR HP :  1.5
  • AGITATOR MATERIAL :  SS
  • TOP HEAD :  FLAT
  • BOTTOM HEAD :  DISHED
Technical Drawings/Spec Sheets
View Documents Arrangement
View Documents Assy Nameplate
View Documents Agitator Data Sheet
View Documents Agitator General Assembly Drawing
View Documents Agitator Nameplate
View Documents Agitator Seal General Assembly Drawing
View Documents Agitator MR-ITP
View Documents Motor Data
View Documents Equipromex Final Inspection Report
ADDITIONAL DESCRIPTION

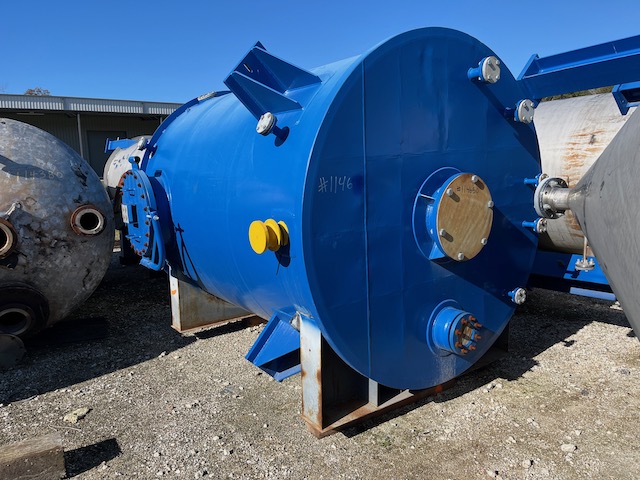

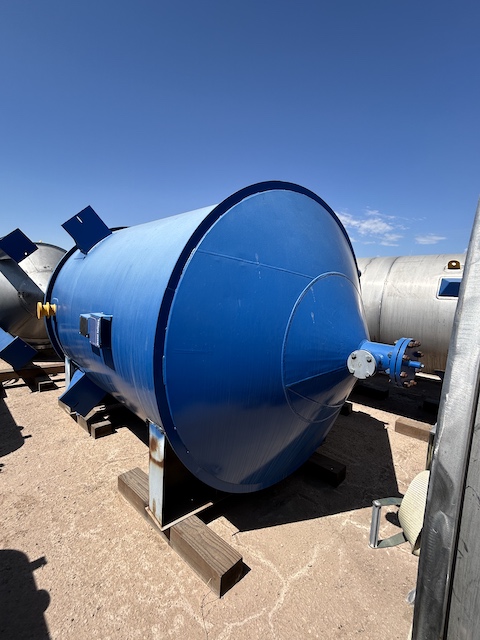

Unused 2750 gallon vertical carbon steel tank. 7'0" diameter x 9'0" T/T. Mfg. by Equipromex (Mexico) in 2022. Caustic soda dosing tank. On lug supports. Flat top and cone bottom. Agitator: Mfg. by Chemineer Model #11MRAL-1.5, 1.5 hp, 1800 rpm input, 84 rpm output, 230/460 volts.
