114606 TANKS
  • ITEM NO :  114606
  • QTY :  1
  • ALLOY :  S
  • GALLONS :  651
  • DIA/WIDTH (FT'IN") :  4'6"
  • LENGTH (FT'IN") :  5'0"
  • SHELL PSI :  ATM
  • FULL VAC. Y/N :  N
  • SHELL TEMP DEG. F :  200
  • V/H :  V
  • SHELL MATERIAL :  304SS POLISHED
  • CODE :  NO
  • AGITATED Y/N :  Y
  • AGITATOR HP :  1
  • AGITATOR MATERIAL :  304SS
  • TOP HEAD :  FLAT HINGED
  • BOTTOM HEAD :  DISHED
Technical Drawings/Spec Sheets
View Documents Drawing
ADDITIONAL DESCRIPTION

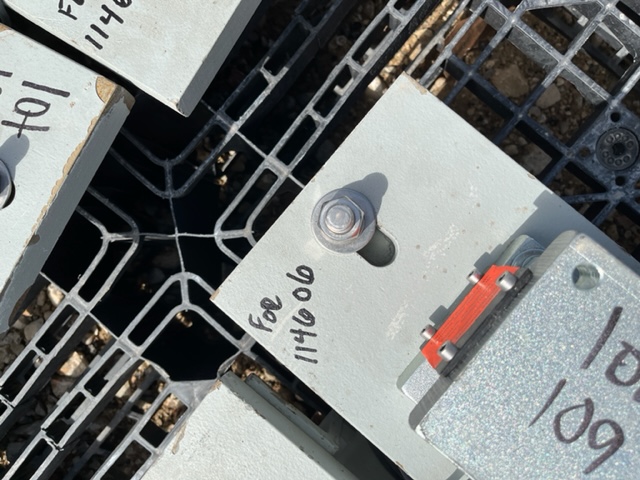

Used 304 polished stainless steel single wall mix tank, complete with agitator drive, shaft and blades. Mfg. by ICC Northwest in 2021. 651.5 Gallon capacity, 54" diameter x 60" high, Atmospheric @ 200 deg. F. (2) internal sidewall baffles. 3 blade agitator with 1 HP drive, with (4) load cells. Dished bottom head and flat hinged top. On lug supports. Top bridge mounted agitator. Nozzle connections: Top 4" agit., (1)2" TC, (2)4" TC, (2)2" FNPT, Btm. 2" TC (CBO).
