114395 TANKS
  • ITEM NO :  114395
  • QTY :  1
  • ALLOY :  S
  • GALLONS :  4600
  • DIA/WIDTH (FT'IN") :  9'6"
  • LENGTH (FT'IN") :  7'6"
  • SHELL PSI :  ATMOS
  • FULL VAC. Y/N :  N
  • SHELL TEMP DEG. F :  335
  • V/H :  V
  • SHELL MATERIAL :  304SS
  • WALL :  3/8"
  • JKT/COIL PSI :  44
  • JKT/COIL TEMP DEG. F :  335
  • JKT/COIL MATERIAL :  304SS
  • AGITATED Y/N :  Y
  • AGITATOR HP :  7.5
  • AGITATOR MATERIAL :  304SS
  • TOP HEAD :  DISHED
  • BOTTOM HEAD :  CONE
Technical Drawings/Spec Sheets
View Documents Drawings
View Documents Agitator Drawing
View Documents (no title)
View Documents Pressure Vessel Design Calculations
ADDITIONAL DESCRIPTION

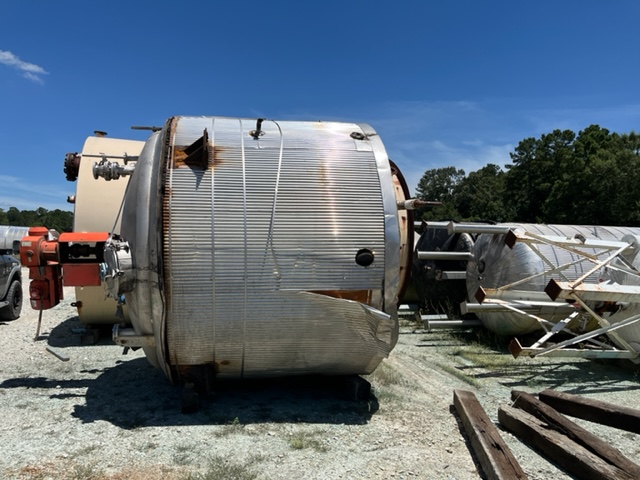

Used 4,600 gallon vertical crystallizer vessel. Mfg. by Alloy Fabricators in 1991. 9'6" diameter x 7'6" T/T. Shell: 304 stainless steel, atmospheric @ 335 deg. F. Jacket: 304 stainless steel, 44 psi @ 335 deg. F. 2" SCH. 10S half pipe on shell od and bottom head. 10" flanged top mounted Pro Quip Agitator, Model #7ZGU30B, 3.5" diameter shaft extending 127" below mounting surface, 304 stainless steel wetted parts, (2) sets of upper impellers 51" diameter 3-bladed Hi Flow, (1) set lower impellers 18" diameter 2-bladed radial flow, 7.5 hp, 0 - 50 rpm. 3 side wall baffles. Dished top and cone bottom.
