114397 VESSELS/REACTORS
  • ITEM NO :  114397
  • QTY :  1
  • ALLOY :  S
  • GALLONS :  1950
  • DIA/WIDTH (FT'IN") :  6'6"
  • LENGTH (FT'IN") :  6'9"
  • SHELL PSI :  15
  • FULL VAC. Y/N :  Y
  • SHELL TEMP DEG. F :  335
  • V/H :  V
  • SHELL MATERIAL :  304SS
  • WALL :  1/2"
  • JKT/COIL PSI :  90
  • JKT/COIL TEMP DEG. F :  335
  • JKT/COIL MATERIAL :  304SS
  • AGITATED Y/N :  Y
  • AGITATOR HP :  7.5
  • AGITATOR MATERIAL :  304SS
  • TOP HEAD :  DISHED
  • BOTTOM HEAD :  DISHED
Technical Drawings/Spec Sheets
View Documents Drawings
View Documents Agitator Drawing
View Documents (no title)
View Documents Half Pipe Jacket Re-rate
View Documents Coil Re-rate
ADDITIONAL DESCRIPTION

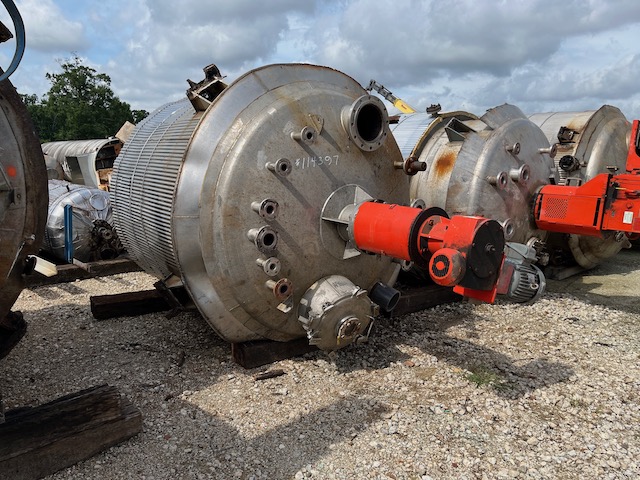

Used 1,950 gallon vertical solvent recovery still. Mfg. by Alloy Fabricators in 1991. 6'6" diameter x 6'9" T/T. Shell: 304 stainless steel, 15FV psi @ 335 deg. F. Jacket: 304 stainless steel, Re-rated to 90 psi @ 335 deg. F. Coil: 304 stainless steel, Re-rated to 90 psi @ 335 deg. F. 2" SCH. 40S half pipe on lower portion of shell od and bottom head and internal 2" SCH 40 coil. 10" flanged top mounted Pro Quip Model #7ZGU30B Agitator, 3" diameter shaft extending 111" below mounting surface, (1) set of upper impellers 51" diameter 2-bladed foam breakers, (1) set of middle impellers 50" diameter 3-bladed Hi Flow, (1) set of lower impellers 30" diameter 3-bladed Hi Flow, 7.5 hp, 0 - 60 rpm, 304 stainless steel wetted parts. 4 side wall baffles. Dished heads, on lug supports.
