112183 COMPRESSORS-CENTRIFUGAL
-
ITEM NO : 112183 -
QTY : 1 -
ACFM : 19400 -
MANUFACTURER : ELLIOTT -
MODEL : 32M4 -
PS : 15 -
PD : 90 -
HP : 2778 -
RPM : 6916 -
PREVIOUS SVC : UNUSED -
INLET SIZE : 12" -
DISCHARGE SIZE : 30" -
DRIVER TYPE : STEAM TURBINE -
DRIVER # : 112184 -
S/N : 20E511AC01
Technical Drawings/Spec Sheets
YouTube Videos
| Compressor Package Video Link | Compressor/Turbine Package |
ADDITIONAL DESCRIPTION

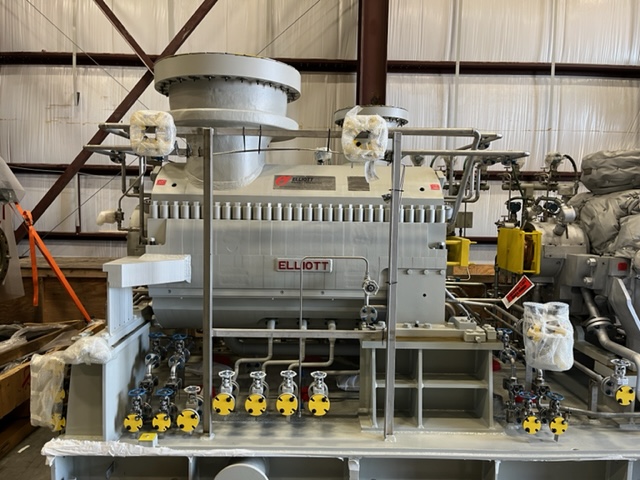

Unused Elliott Compressor Model 32M4 item 112183
Design Inlet Pressure: 15 psia.
Design Inlet Temp: 35 deg. F.
Design Discharge Pressure: 77-90 psia.
Design Flow: 17,862 cfm to 19,400 cfm.
Design Speed: 6516 to 7178 rpm.
Coating: POS-E-Coat 523 on rotor and diaphragms.
Bearings: Kingsbury LEG with instrumentation (Thrust); Elliott TPJ.
Seals: John Crane T28 gas seals.
Inlet Flange size: 12" 600#.
Discharge Flange: 30" 600#.
Unused Elliott Steam Turbine Model SRV4 item number 112184;
Inlet Condition: 150 psig / 420 deg. F.
Exhaust: 15 psig - 250 deg. F.
HP: 2778 HP.
Speed: 6916 rpm.
Machines are packaged as a complete skid, ready to install. Also have spare rotor (with respective coatings).
