114936 PUMPS-CENTRIFUGAL
  • ITEM NO :  114936
  • QTY :  1
  • ALLOY :  S
  • GPM :  17
  • FT HEAD :  151
  • CASE MATERIAL :  316SS
  • IMPELLER MATERIAL :  316SS
  • V/H :  H
  • MANUFACTURER :  DURCO (FLOWSERVE)
  • MODEL :  MARK III LO-FLO
  • SIZE :  1.5X1X8
  • DRIVER TYPE :  MOTOR
  • HP :  5
  • RPM :  3485
  • VOLTAGE :  460
Technical Drawings/Spec Sheets
View Documents Cross Sectional Drawing
View Documents Performance Curve
View Documents Hydraulic Data Sheet
View Documents Construction Data Sheet
View Documents General Arrangement Drawing
View Documents Coupling Drawing
View Documents Mechanical Seal Drawing
View Documents Motor Outline Drawing
View Documents Motor Performance Data-Curve
View Documents Motor Wiring Diagram
ADDITIONAL DESCRIPTION

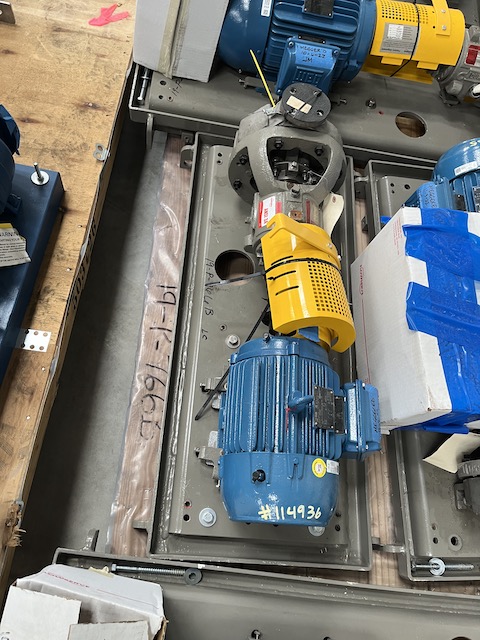

Unused Horizontal Centrifugal Lo-Flo Pump. Vacuum Seal Tank Circulation Pump. Mfg. by Durco (Flowserve). 17 gpm @ 151' head. Size 1K1.5x1LF-82OP5.56. Type MK3 LO-Flow. MDP 275 psi @ 100 deg. F. 248 deg. F. Casing: 316SS. Impeller: 316SS. 5 HP motor.
