114715 EXCHANGERS
  • ITEM NO :  114715
  • QTY :  1
  • ALLOY :  S
  • SQ.FT. :  333
  • MATERIAL (S) :  DUPLEX 2205
  • MATERIAL (T) :  DUPLEX 2205
  • MATERIAL (H) :  CS
  • PSI (S) :  662FV
  • PSI (T) :  288FV
  • TEMP. DEG. F (S) :  300
  • TEMP. DEG. F (T) :  330
  • TUBE LENGTH FT'IN" :  16'7"
  • V/H :  H
  • CODE :  NB
  • TEMA TYPE :  AEU
  • SHELL DIAMETER FT'IN" :  1'3"
Technical Drawings/Spec Sheets
View Documents General Data
View Documents Drawings
View Documents Drawings
View Documents Drawings
ADDITIONAL DESCRIPTION

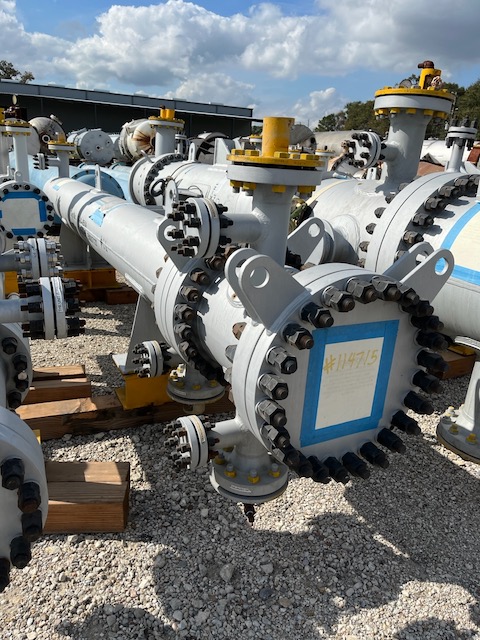

Unused 333 sq. ft. horizontal heat exchanger. 7.9 Design duty (MMBTU/Hr). Mfg. by Wuxi Chemical Equipment (China) in 2023. Shell Design Rating: 370/FV psig @ 300 deg. F. Tube Design Rating: 285/FV psig @ 330 deg. F. Shell mawp 662.3/FV psig @ 300 deg. F. Tube mawp 288.3/FV psig @ 330 deg. F. 5.5" X 16'7.5". Feed/Effluent exchanger. Under Nitrogen Purged.
