114770 EXCHANGERS
  • ITEM NO :  114770
  • QTY :  1
  • ALLOY :  S
  • SQ.FT. :  1068
  • MATERIAL (S) :  304SS
  • MATERIAL (T) :  304SS
  • MATERIAL (H) :  304SS
  • PSI (S) :  174FV
  • PSI (T) :  87FV
  • TEMP. DEG. F (S) :  428
  • TEMP. DEG. F (T) :  428
  • TUBE LENGTH FT'IN" :  10'0"
  • V/H :  V
  • CODE :  NB
  • TEMA TYPE :  BEM
  • SHELL DIAMETER FT'IN" :  2'0"
Technical Drawings/Spec Sheets
View Documents (no title)
View Documents (no title)
View Documents (no title)
View Documents (no title)
ADDITIONAL DESCRIPTION

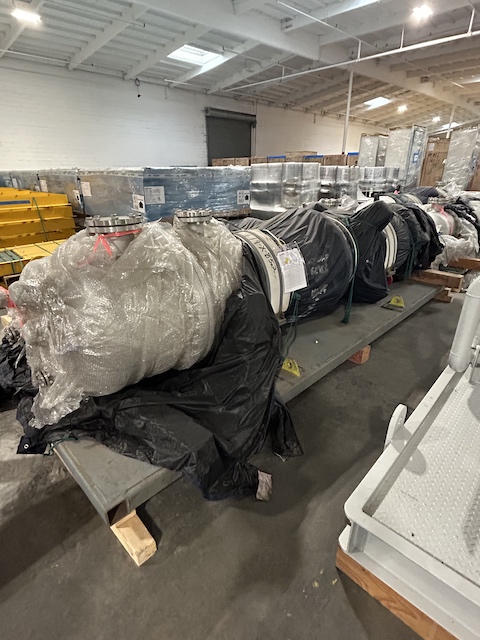

Unused 1,068 sq. ft. vertical heat exchanger. 4.9 Design duty (MMBTU/Hr). Mfg. by Wuxi Chemical Equipment (China) in 2021. Shell: 174FV psi @ 428 deg. F. Tubes: 87FV psi @ 428 deg. F.; 24" x 10'0".Oil/Steam Heat Exchanger. Nitrogen Purge.
