114699 AIR FIN COOLERS
  • ITEM NO :  114699
  • QTY :  1
  • ALLOY :  S
  • EXTENDED SQ.FT. :  49861
  • BARE SQ.FT. :  2367
  • PSI :  75
  • FULL VACUUM Y/N :  Y
  • TEMP. DEG. F :  300
  • TUBE MATERIAL :  316LSS
  • TOTAL TUBES :  348
  • TUBE LENGTH (FT'IN") :  26'0"
  • TUBE DIA(IN") :  1
  • HEADER MATERIAL :  316LSS
  • PASSES :  2
  • # OF SECTIONS :  2
  • SIMILAR SECTIONS :  0
  • ROWS PER SECTION :  6 & 6
  • FAN HP :  25
  • # OF FANS :  2
  • O.A.L. (FT'IN") :  34'10"
  • O.A.W. (FT'IN") :  14'8"
  • PREVIOUS SERVICE :  AGR1 & 2 AMINE REGEN OVHD AIR COOLER
Technical Drawings/Spec Sheets
View Documents (no title)
ADDITIONAL DESCRIPTION

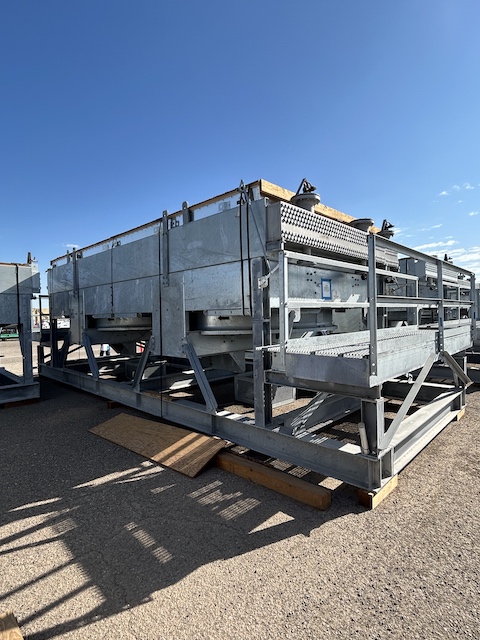

(1) Fin Fan with two different bundles. With Combined 2367 Bare sq. ft. and 49861 Extended sq. ft. Unused; Mfg by Fabsco in 2024. Bundle 18-XF-270 AGR1 Amine Regen Overhead Air Cooler. 1939 bare sq. ft. 40,835 extended sq. ft. 26'0" tube length. 14.5 Design duty (MMBTU/hr). 75 FV Design Pressure Barg @ 300 deg. F. design temperature. 316LSS tubes and headers. (2) 25 hp fans. 285-1"od x .065"mw. 1 bundle, 6 rows, 2 passes. Top louvers. XF270 has (2)8" inlets and (2)4" outlets. Bundle 18-XF-271 AGR2 Amine Regen Overhead Air Cooler. 428 bare sq. ft. 9026 extended sq. ft. 26'0" tube length. 2.4 Design duty (MMBTU/hr). 75 FV Design Pressure Barg @ 300 deg. F. design temperature. 316LSS. Fans included with 18-XF-270. 63-1"od x 065"mw. 1 bundles, 6 rows, 2 passes. Top louvers.(1)6" inlet and (1)4" outlet. Under Nitrogen Purge.
