115426 EVAPORATORS
  • ITEM NO :  115426
  • QTY :  1
  • ALLOY :  S
  • TYPE :  WIPED FILM
  • SQ.FT. :  231
  • MANUFACTURER :  PFAUDLER
  • DIAMETER FT'IN" :  5'0"
  • LENGTH FT'IN" :  30'1"
  • SHELL MATERIAL :  316LSS
  • PSI :  15
  • FULL VACUUM Y/N :  Y
  • CODE :  NB
  • JACKETED Y/N :  Y
  • JACKET PSI :  110FV
  • JACKET TEMP. DEG. F :  650
Technical Drawings/Spec Sheets
View Documents Drawings
ADDITIONAL DESCRIPTION

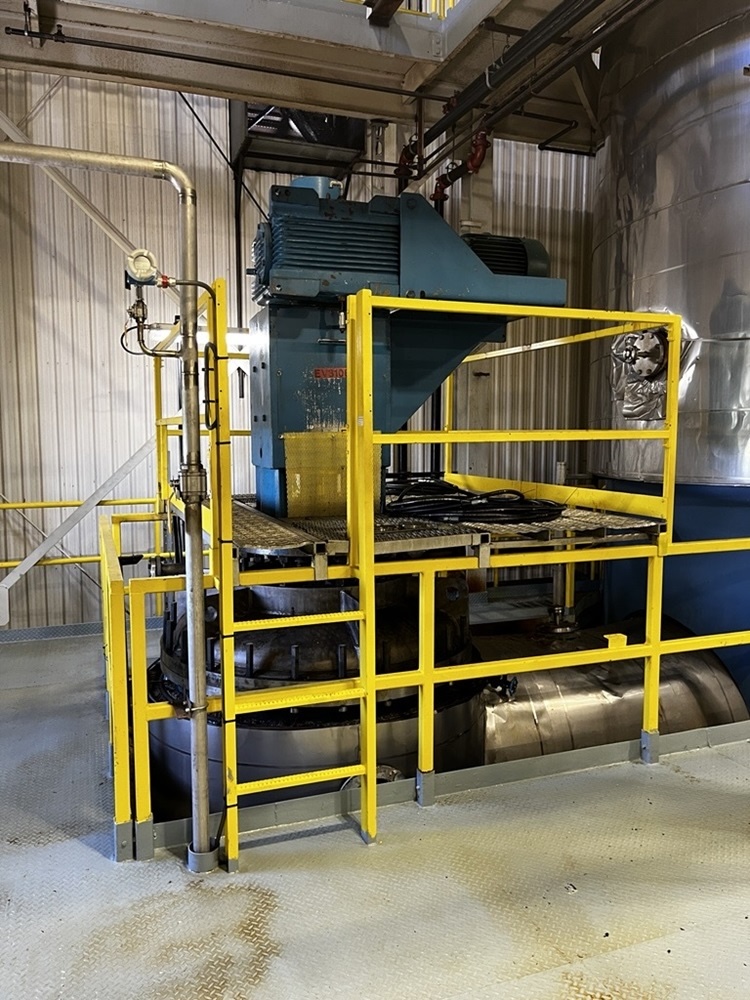

Used 231 sq. ft. 316L Stainless Steel Wiped Film Evaporator. Mfg. by Pfaudler in 2003. Internal MAWP 15 PSI FV @ 650°F. Spiral Jacket MAWP 110 PSI FV @ 650°F. Dimensions 361" OAL x 60" diameter. Top entering agitation with Chevron vanes and centrifugal carbon rotors driven by 25 HP motor. Feed: 2" Flange. Vapor outlet 40" diameter welded. (4) Lug mounted.
