115413 EXCHANGERS
  • ITEM NO :  115413
  • QTY :  1
  • ALLOY :  S
  • SQ.FT. :  1622
  • MATERIAL (T) :  304SS
  • PSI (S) :  149
  • PSI (T) :  149
  • TEMP. DEG. F (S) :  150
  • TEMP. DEG. F (T) :  150
  • CODE :  NB
  • SHELL DIAMETER FT'IN" :  2'1"
  • O.A.L FT'IN" :  5'0"
Technical Drawings/Spec Sheets
View Documents Specs
View Documents Drawing
ADDITIONAL DESCRIPTION

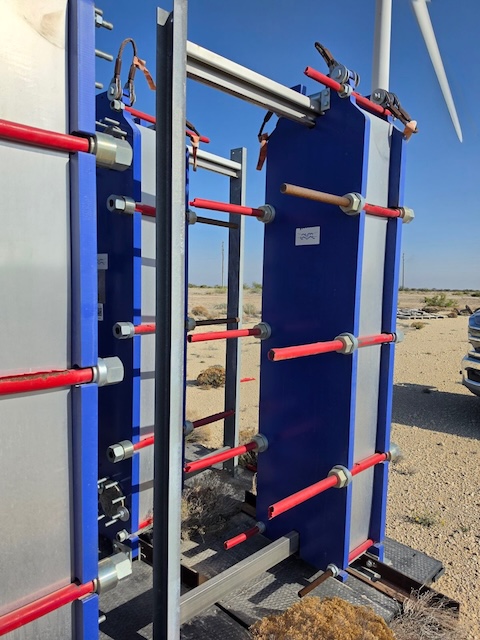

Unused estimated 1622 sq. ft. plate heat exchanger. Mfg. by Alfa Laval in 2021. Model TL15-BFG. 149.4 psi design pressure (MAWP). 150.1°F design temperature max. 32.0°F design temperature, min (MDMT). Alloy 304 stainless steel plate material. 0.0157" plate thickness. NBRP clip-ads (hot & cold side) gasket material/attachment. 59.96"L x 25.08"W x 105.98"H.
