115401 EXCHANGERS
  • ITEM NO :  115401
  • QTY :  1
  • CODE :  NB
Technical Drawings/Spec Sheets
View Documents Data Sheet
View Documents Drawing
ADDITIONAL DESCRIPTION

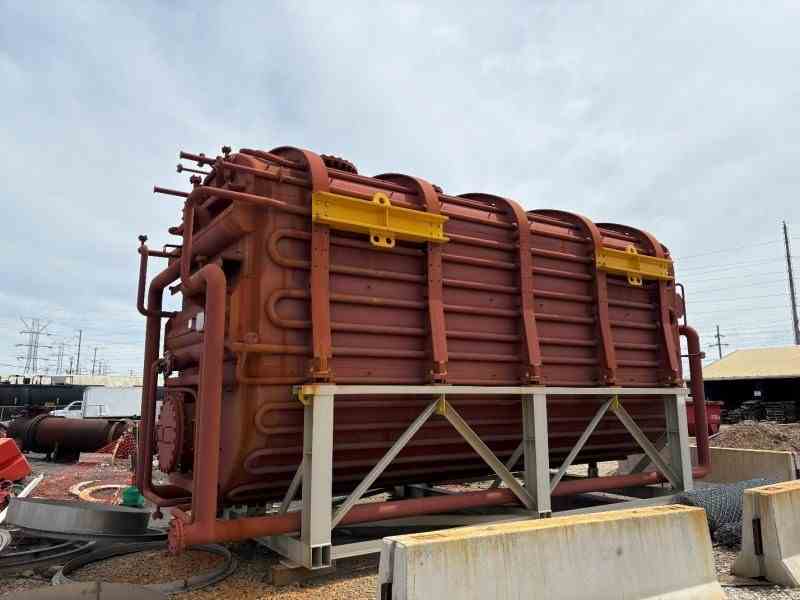

Unused phthalic anhydride switch condenser. Mfg by Kelvion in 2022. Designed to recover phthalic anhydride (PA) from the plant gas stream. Type Jupiter 2 U6800/2548-4B2. 4442 m2 gas side surface area and 58,000 liters gas side capacity. Steamside capacity 3x5 L . Oil side capacity 3,100 liters. Oil side MAWP 6.0 bar @ 220°C, gas side MAWP 0.7 bar @ 220°C, steam side MAWP 12.5 bar @ 205°C. Minimum design temperature -29°C. Designed to process 5,600 kg of PA per loading cycle. ASME U-stamped. Approximate dimensions: L: 27’ H: 14’ 10” W: 11’ .
