115380 EXCHANGERS
  • ITEM NO :  115380
  • QTY :  1
  • ALLOY :  S
  • MATERIAL (S) :  SS
  • PSI (S) :  363
  • TEMP. DEG. F (S) :  1.4
  • TUBE LENGTH FT'IN" :  9'10"
  • SHELL DIAMETER FT'IN" :  2'11"
Technical Drawings/Spec Sheets
View Documents Installation Manual
ADDITIONAL DESCRIPTION

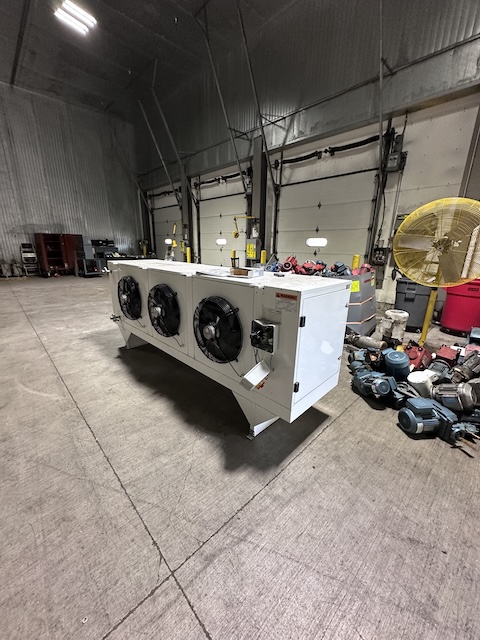

Used 500 kg/hr (1,100 lb/hr) stainless steel CO2 vaporizer. Manufactured by ASCO in 2018. Model #4065200-V-3x480-60Hz (P) (SS). Designed for vaporizing liquid CO2, rated 25 bar (363 psig) @-17°C. Internal volume 43.58 liters. Fan-assisted design with specified air flow rate of 5.1 m³/sec. CO2 inlet/outlet connections: 1", DN25/33.7. Dimensions: 9'10" L x 2'11"W x 3'11"H. Previously used in brewery.
