115364 COOLING TOWERS
  • ITEM NO :  115364
  • QTY :  1
  • TONS :  202
  • GPM :  250
  • MANUFACTURER :  COLMAC COIL MANUFACTURING INC.
  • MODEL :  AFH-90162-1465L-C-30-1
  • MATERIAL :  GALVANIZE STEEL CASING/COPPER TUBES
  • NO. OF CELLS :  1
  • FAN DIAMETER :  30"
  • NO. OF FANS :  6
  • HP :  1.5
  • RPM :  1165
  • VOLTAGE :  460
  • OVERALL LENGTH :  182.25"
  • OVERALL WIDTH :  60.5"
  • OVERALL HEIGHT :  105"
Technical Drawings/Spec Sheets
View Documents Drawings
ADDITIONAL DESCRIPTION

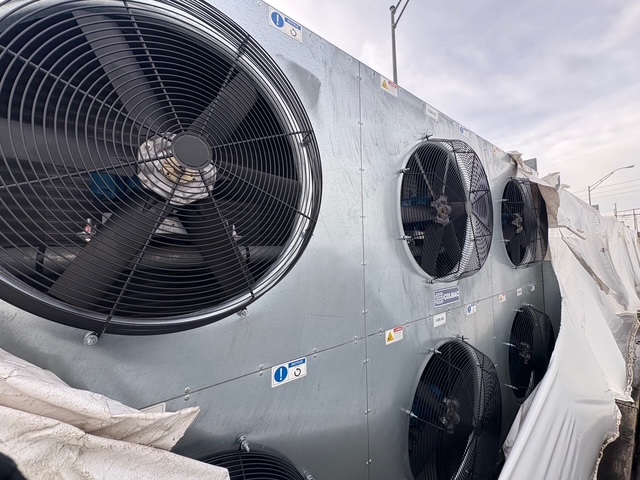

Unused flat deck horizontal Fluid Cooler (Dry Cooler) Mfg. by Colmac Coil Manufacturing Inc. Galvanized steel casing material, copper 5/8" OD x .025" wall tube material. Aluminum 0.006" thick fin material. 2,431,357 BTUH (202 tons) capacity. Air flow 51,108 cfm. 101.25 sq. ft. face area/coil size. Coil dimensions (tubes high x fin length): Fin ht 90" x fin length 162". 14 FPI, 5 rows deep, waffle/ripple pattern. 182 1/4" L x 60 1/2" W OAL (see dwg for full detail). 150 psig @ 100°F. MDMT -40°F. design pressure/temperature. 250 gpm flow rate. 150°F in/130.18°F out entering and leaving fluid temperature. 97°F DB ambient, 1,000 ft elevation. 6" steel MPT connections in/out. Control panel per dwg FAB00023005: dual fan cycling, System 450 temp control. With (6) 1.5 hp motors, 460/60/3, (6 x 30" fans).
