115351 EXCHANGERS
  • ITEM NO :  115351
  • QTY :  1
  • ALLOY :  S
  • SQ.FT. :  1347
  • MATERIAL (S) :  CS
  • MATERIAL (T) :  304LSS
  • MATERIAL (H) :  CS
  • PSI (S) :  150
  • PSI (T) :  150
  • TEMP. DEG. F (S) :  300
  • TEMP. DEG. F (T) :  300
  • TUBE DIAMETER IN" :  0.75
  • TUBE LENGTH FT'IN" :  9'0"
  • TUBE PITCH :  0.9375" TRI
  • TUBE WALL :  0.049"
  • PASSES (S) :  1
  • PASSES (T) :  4
  • V/H :  H
  • CODE :  NB
  • SHELL DIAMETER FT'IN" :  2'6"
ADDITIONAL DESCRIPTION

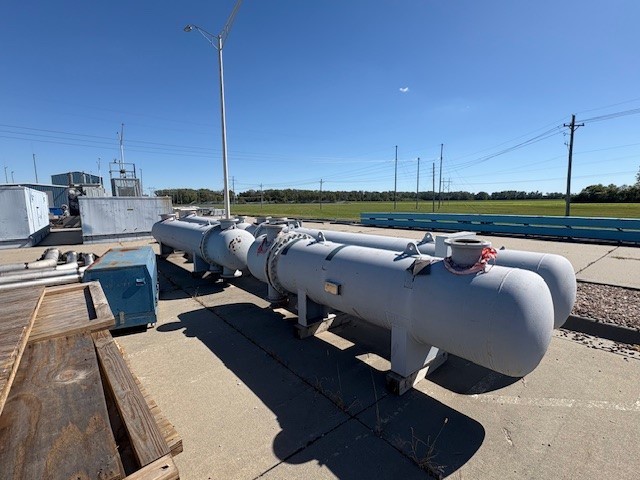

Reported to be Unused 1347 sq. ft. horizontal shell & U-tube removable bundle heat exchanger. Mfg. by Diversified Heat Transfer Inc. in 2015. Model WC30B4-108. 30" shell diameter x 9'0" bundle length. Shell: carbon steel, 150 psi @ 300 deg. F. Tube: 304L stainless steel, 150 psi @ 300 deg. F. . Heads & Tubesheets: carbon steel. 0.75" tube O.D. 0.049" tube wall thickness, 18 BWG gauge, 0.9375" triangular tube pitch.
