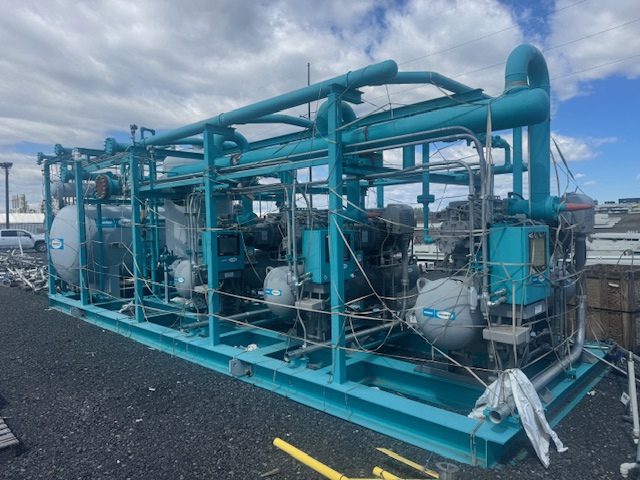

Unused 180 Ton Stand alone R-507 refrigeration skid provided by Toromont - CIMCO in 2015. It was designed for a system that sent the cooled refrigerant directly out to the users and back. Therefore, the skid does not contain an evaporator as it was not intended to cool an intermediate heat transfer fluid. The skid contains 3 capacity Frick compressor systems each designed for 50% capacity and able to operate at the same time. The compressors each have a Quantum HD / Johnson Controls Controllers for each compressor and a separate control panel for the condenser fans and skid with an Allen Bradly HMI. Basic Design Refrigerant R-507, Total System Capacity 180 TonsR, Design Pressure 350 psig. Compressor Model #XJF151L, Compressor Design Pressure 362 psig, Flowrate 2,112.9 SCFM, Speed 3,550 RPM,Compression Ratio 11.67, Capacity (per compressor)60.3 TonsR, Motor 250 HP-460V, 3-phase. Skid Dimensions 12'W × 40'L × 12'H (condensers/fans separate),Skid Weight (Dry)6,294 lbs. Includes Condenser forced Draft Counterflow Evaporative Condenser,Three fans 7.5 HP, 460V, 3 Phase,Two Pumps 7.5 HP, 460V, 3-Phase (1 required, 1 redundant), One Immersion Heater 15 kW, 460V, 3-Phase, Coil MAWP 350 psig, Condenser Dimensions (Approx.)9'-10"W × 17'-11"L × 15'-4"H.
