115320 FILTERS
  • ITEM NO :  115320
  • QTY :  1
  • ALLOY :  S
  • TYPE :  CARTRIDGE
  • MANUFACTURER :  MOTT CORPORATION
  • MODEL :  9354100-020
  • SQ.FT. :  676
  • SQ. Meter :  63
  • SHELL MATERIAL :  304LSS
  • INTERNAL MATERIAL :  304LSS
  • PSI :  980
  • FULL VACUUM Y/N :  Y
  • TEMP. DEG. F :  980
  • JACKETED Y/N :  N
  • DIAMETER FT'IN" :  4'0"
  • LENGTH FT'IN" :  4'6"
  • V/H SHELL/INTERNAL :  V/V
  • NO. OF INTERNALS/PLATES :  124
Technical Drawings/Spec Sheets
View Documents Pressure Vessel Design Calculations
View Documents Installation Operation & Maintenance Manual
View Documents Drawings & Specs
ADDITIONAL DESCRIPTION

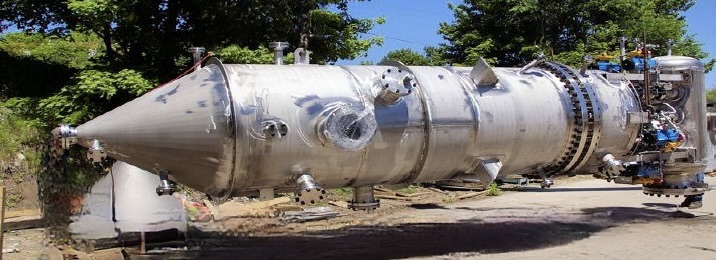

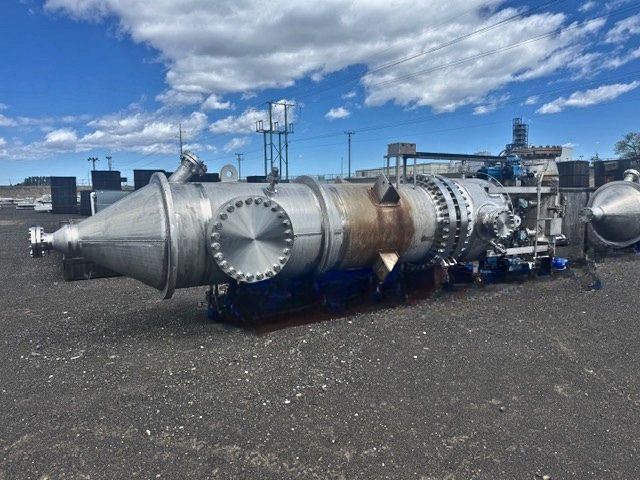

Unused Mott (GSV) Gas Solids Venturi Pulse Blowback Filter System with automatic on-line cleaning. Model #9354100-020. 676 sq. ft. total filtration area with (124) total filter elements 2.5" od x 100" porous length x 108.28" o.a.l. Vertical Filter Vessel: 54"/48" OD X 21.8 Ft. High, including: (4)4" Cl 300 SS Auto Backpulse Valves, (4)4" Cl 300 SS Manual Isolation Valves, 60 psig at 980° F. Internal design MAWP, FV @ 980°F external design. Horizontal Accumulator Tank: 29 Ft3 Volume, 30" OD X 7.4 Ft. OAL X 3.8 Ft. High, including (1)6" Cl 150 SS Instrument Air Manifold for Auto Backpulse Valve Actuators. 150 psig at 500° F. internal design MAWP, FV @ 500°F external design.
