115188 GENERATORS
  • ITEM NO :  115188
  • QTY :  1
  • KVA :  190
  • KW :  190
  • MANUFACTURER :  CAPSTONE
  • MODEL :  200R-FG4-BE00
  • VOLTAGE :  400/480
  • FREQUENCY :  50/60 Hz
  • RPM :  61000
ADDITIONAL DESCRIPTION

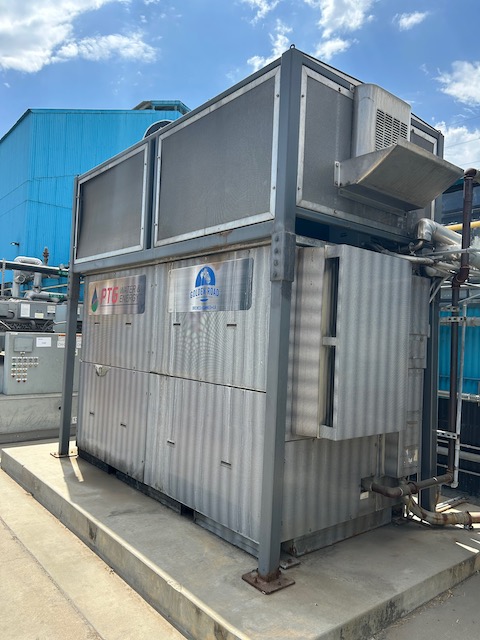

Used 190 kW natural gas micro turbine. Manufactured by Capstone. Model #200R-FG4-BE00, 400/480V, kVA 190, max current per phase 300 A, frequency 50/60 Hz, phase 3, rpm 61000. Rated -4°F to 122°F. Fuel type low pressure natural gas, H2S <5 ppmv, min fuel heat value 825 Btu/scf, max fuel heat value 1275 Btu/scf, min operating pressure 0.25 psig, max operating pressure 5.0 psig. Built 2015.
