115136 VESSELS/REACTORS
  • ITEM NO :  115136
  • QTY :  1
  • ALLOY :  S
  • GALLONS :  9300
  • DIA/WIDTH (FT'IN") :  10'0"
  • LENGTH (FT'IN") :  15'9"
  • SHELL PSI :  29
  • FULL VAC. Y/N :  N
  • SHELL TEMP DEG. F :  86
  • V/H :  V
  • SHELL MATERIAL :  304SS
  • CODE :  NB
  • WALL :  .236"
  • JKT/COIL PSI :  43
  • JKT/COIL TEMP DEG. F :  86
  • JKT/COIL MATERIAL :  304SS
  • AGITATED Y/N :  N
  • TOP HEAD :  DISHED
  • BOTTOM HEAD :  CONE
Technical Drawings/Spec Sheets
View Documents Drawing
ADDITIONAL DESCRIPTION

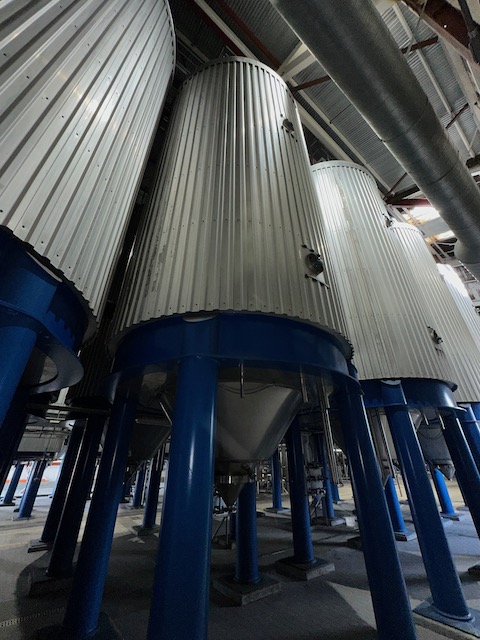

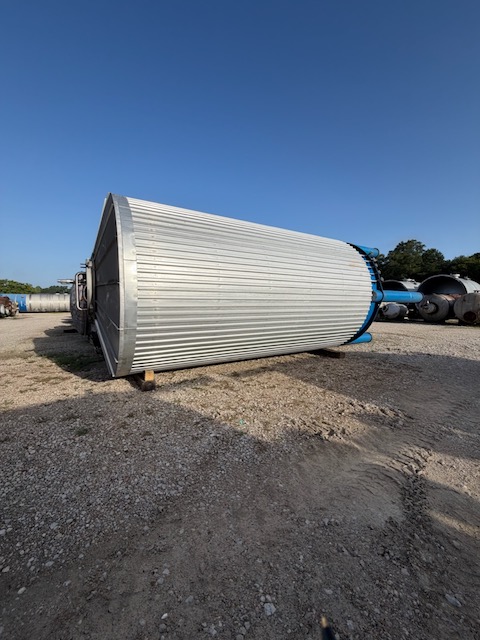

Used 9300 gallon (300 BBL) 304 stainless steel jacketed pressure vessel. Manufactured by Ziemann Bauer GmbH. Vessel Rated 29 psi @ 86°F, jacket rated 43 psi @ 86°F. 10' 2" dia x 30' O.A.H., Half Pipe Cooling Jacket on Shell O.D. and Bottom Head, Dished Top head and cone bottom. Previously used in brewery as fermenter, cooled with Glycol @ 24°F. Built 2012.
