115212 TANKS
  • ITEM NO :  115212
  • QTY :  1
  • ALLOY :  S
  • GALLONS :  16600
  • DIA/WIDTH (FT'IN") :  10'2"
  • LENGTH (FT'IN") :  26'9"
  • SHELL PSI :  15
  • FULL VAC. Y/N :  N
  • SHELL TEMP DEG. F :  100
  • V/H :  V
  • SHELL MATERIAL :  304SS
  • WALL :  10 GA
  • JKT/COIL PSI :  100
  • JKT/COIL TEMP DEG. F :  100
  • JKT/COIL MATERIAL :  304SS
  • AGITATED Y/N :  N
  • TOP HEAD :  DISHED
  • BOTTOM HEAD :  CONE
Technical Drawings/Spec Sheets
View Documents Drawing
ADDITIONAL DESCRIPTION

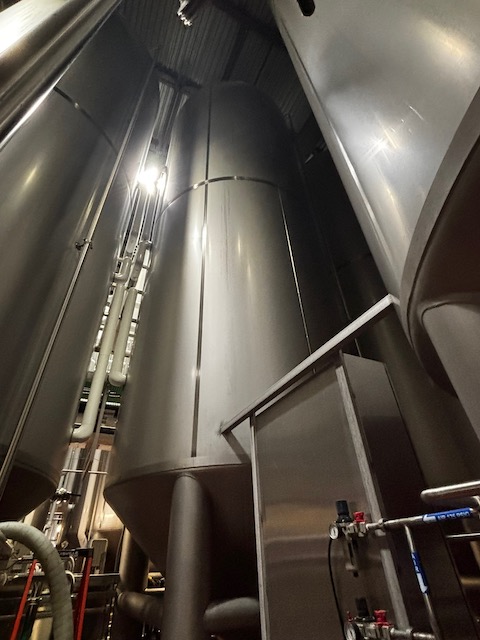

Used 16,600 Gallon, Model "F" Special cone bottom, 304 Stainless Steel tank, dimple jacketed, cone bottom. Manufactured by Mueller. Dished head. 10' 1 7/8" OD x 36' 11 3/8" O.A.H., Shell rated 15 psi @ 100°F. Jacket rated 100 psi @ 100°F. Weight: 13,200 lbs. Built in 1995. Previous use: 400 BBL brewery fermentation vessel.
