115036 TANKS
  • ITEM NO :  115036
  • QTY :  1
  • ALLOY :  S
  • GALLONS :  3292
  • DIA/WIDTH (FT'IN") :  7'0"
  • LENGTH (FT'IN") :  10'0"
  • SHELL PSI :  ATM
  • FULL VAC. Y/N :  N
  • SHELL TEMP DEG. F :  300
  • V/H :  V
  • SHELL MATERIAL :  304SS
  • CODE :  NO
  • AGITATED Y/N :  N
  • TOP HEAD :  DISHED
  • BOTTOM HEAD :  DISHED
Technical Drawings/Spec Sheets
View Documents (no title)
ADDITIONAL DESCRIPTION

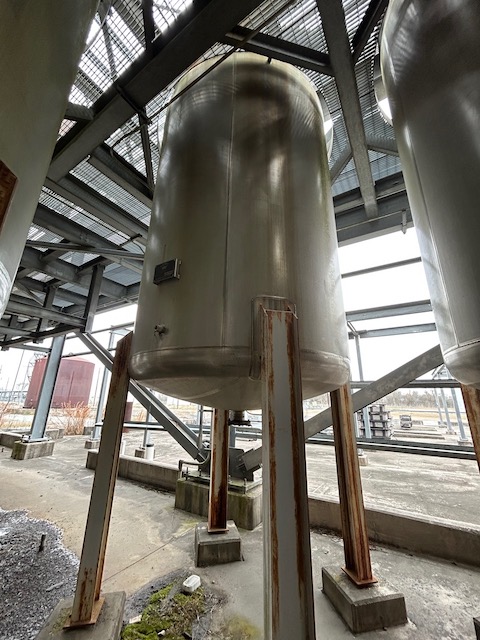

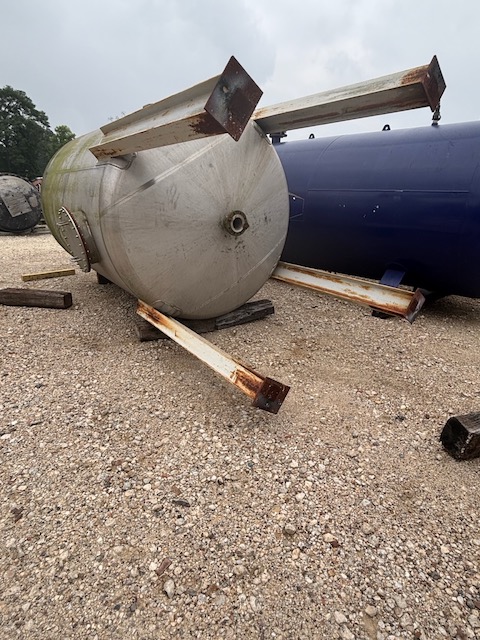

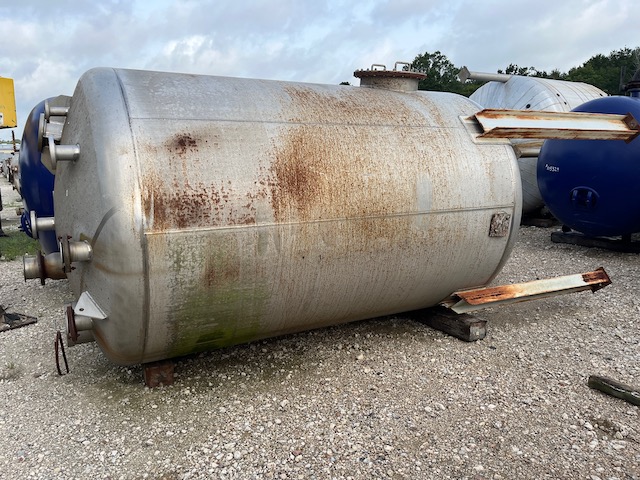

Unused 304 Stainless Steel Vertical 3292 gallon (440 cu. ft.) single wall tank. Mfg. by (Pagent Equipment) Crown Iron Works. 7'0" diameter x 10'0" Length. Dished Heads. On Leg Supports. 20" side manway, 12" top stub pipe opening, set up for 6" flange mount, top agitation.
