115031 FILTERS
  • ITEM NO :  115031
  • QTY :  1
  • ALLOY :  S
  • TYPE :  PRESSURE LEAF
  • MANUFACTURER :  AMAFILTER GROUP
  • MODEL :  1650/60/24
  • SQ.FT. :  645
  • SQ. Meter :  60
  • SHELL MATERIAL :  CS
  • INTERNAL MATERIAL :  SS
  • PSI :  90
  • FULL VACUUM Y/N :  N
  • TEMP. DEG. F :  302
  • JACKETED Y/N :  N
  • DIAMETER FT'IN" :  5'5"
  • V/H SHELL/INTERNAL :  H/V
  • NO. OF INTERNALS/PLATES :  (24) STAINLESS STEEL LEAFS
ADDITIONAL DESCRIPTION

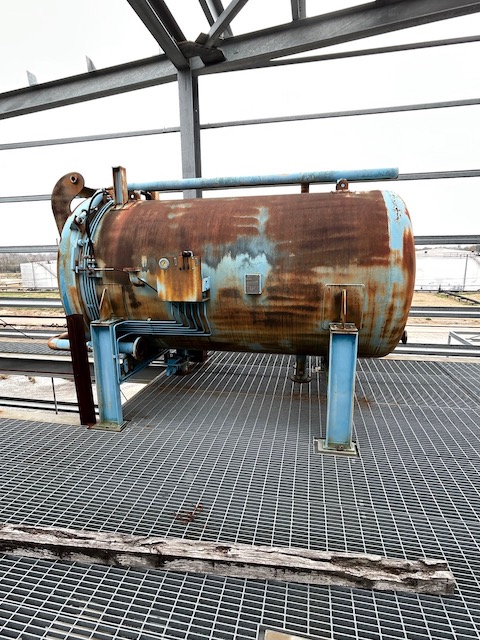

Unused 645 Square Foot Horizontal Pressure Leaf Filter. Manufactured by Amafilter Group in 2007. Model #1650/60/24. Filter area cake volume 60 m2. 64.96" diameter. (24) Stainless Steel leafs, 1650 mm dia. Carbon Steel Housing, 6000dm3 Filter volume, 100mm Leaf Spacing. Floor Space 2000 mm x 6300 mm x 2400mm Height. (2) Feed Connections. Leafs are not in the housings and are stored under on pallets.
