115029 VESSELS/REACTORS
  • ITEM NO :  115029
  • QTY :  1
  • ALLOY :  S
  • GALLONS :  12700
  • DIA/WIDTH (FT'IN") :  12'0"
  • LENGTH (FT'IN") :  11'8"
  • SHELL PSI :  15
  • FULL VAC. Y/N :  Y
  • SHELL TEMP DEG. F :  250
  • V/H :  V
  • SHELL MATERIAL :  316LSS
  • CODE :  NB
  • WALL :  1/4"
  • AGITATED Y/N :  N
  • TOP HEAD :  DISHED
  • BOTTOM HEAD :  DISHED
Technical Drawings/Spec Sheets
View Documents NB Papers and Drawing
ADDITIONAL DESCRIPTION

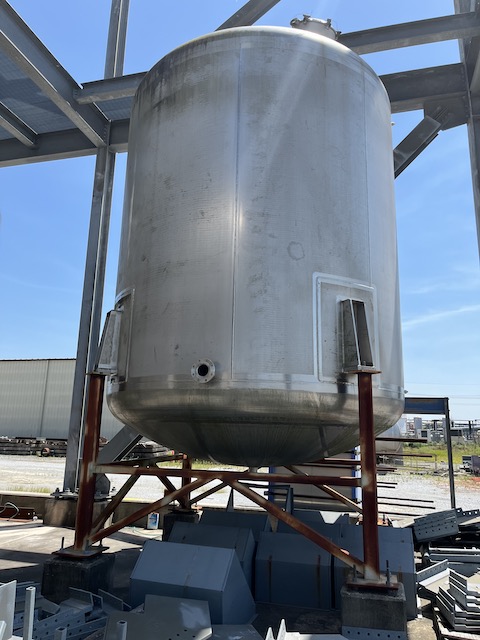

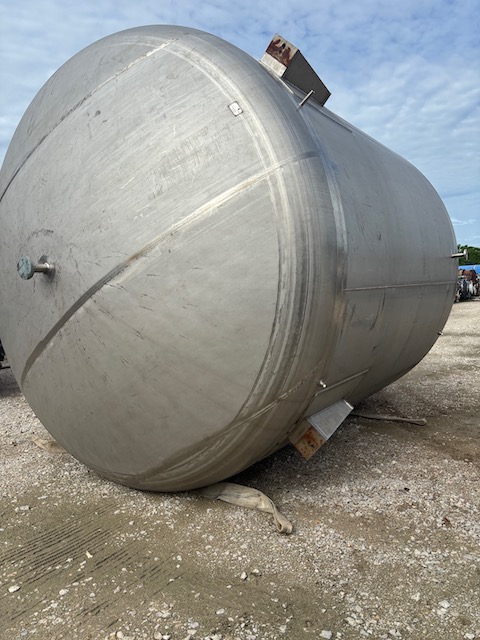

Unused 12,700 gallon Vertical 316L Stainless Steel vessel. Manufactured by Crown Iron Works (pagent Equipment in 2007. Rated 15FV @ 250ºF. Lug/Leg Supports. Dished Heads. 1/4" Thick Shell Wall. 18'2" Overall Height. 20" Top Manway.
