115022 VESSELS/REACTORS
  • ITEM NO :  115022
  • QTY :  1
  • ALLOY :  S
  • GALLONS :  2505
  • DIA/WIDTH (FT'IN") :  7'0"
  • LENGTH (FT'IN") :  6'10"
  • SHELL PSI :  50
  • FULL VAC. Y/N :  N
  • SHELL TEMP DEG. F :  250
  • V/H :  V
  • SHELL MATERIAL :  316LSS
  • CODE :  NB
  • WALL :  3/16"
  • AGITATED Y/N :  N
  • TOP HEAD :  DISHED
  • BOTTOM HEAD :  DISHED
Technical Drawings/Spec Sheets
View Documents Drawing
ADDITIONAL DESCRIPTION

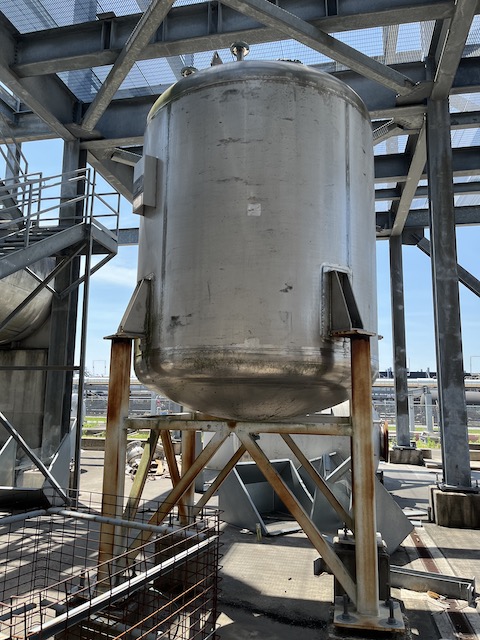

Unused 2505 gallons Vertical 316L Stainless Steel Vessel. Manufactured by (Pagent Equipment) Crown Iron Works in 2007. Dished Heads, Lug/Legs Supports. Rated 25 psig @ 250ºF. 11'2" Overall Length. (4) Internal Sidewall Baffles. Set up for Top Center 8" Flange Mount Agitation. 20" Top Manway, 3/16" Thick Shell Wall.
