114826 PUMPS-CENTRIFUGAL
  • ITEM NO :  114826
  • QTY :  1
  • ALLOY :  C
  • GPM :  151
  • FT HEAD :  147
  • PUMP CASE RPM :  3520
  • CASE MATERIAL :  CS
  • IMPELLER MATERIAL :  316LSS
  • V/H :  H
  • MANUFACTURER :  SUNDYNE HMD KONTRO
  • MODEL :  GSP-3X1.5X6H DA6
  • SIZE :  3X1.5X6
  • DRIVER TYPE :  MOTOR
  • HP :  15
  • RPM :  3520
  • VOLTAGE :  460
Technical Drawings/Spec Sheets
View Documents (no title)
View Documents (no title)
View Documents (no title)
View Documents (no title)
ADDITIONAL DESCRIPTION

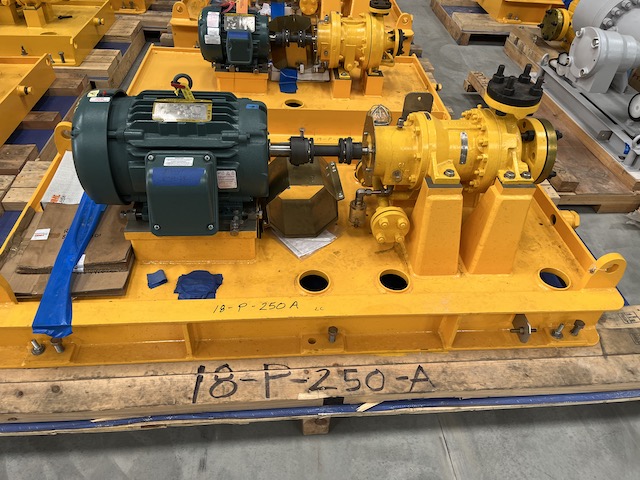

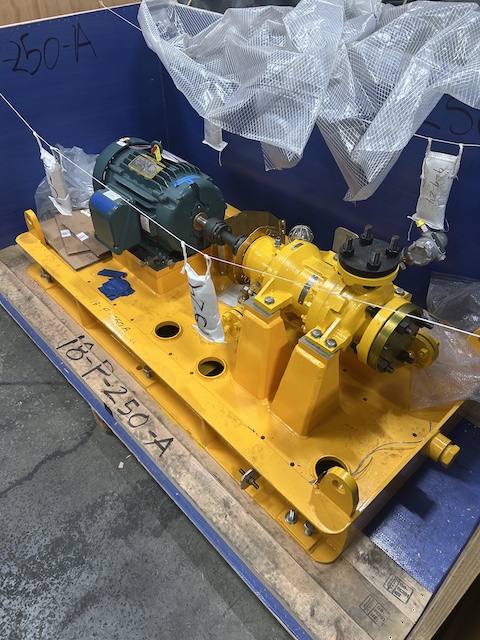

Unused Magnetic Driven Single Stage Centrifugal Pump. Acid Gas Stripper Bottoms Pump. Mfg. by Sundyne HMD Kontro. 151 gpm @ 147' head. 580 psi @ 390 deg. F. Carbon Steel casing and cover, 316LSS impeller, shaft and wear rings,316LSS containment shell with hastelloy C276 stator liner. liner, . With 15 hp motor.
