114820 PUMPS-CENTRIFUGAL
  • ITEM NO :  114820
  • QTY :  1
  • ALLOY :  C
  • GPM :  250
  • FT HEAD :  109.3
  • PUMP CASE RPM :  1760
  • CASE MATERIAL :  CS
  • IMPELLER MATERIAL :  12 CR
  • V/H :  H
  • MANUFACTURER :  DURCO (FLOWSERVE)
  • MODEL :  MK3-2K3X2X13RV
  • SIZE :  3X2X13
  • DRIVER TYPE :  MOTOR
  • HP :  15
  • RPM :  1760
  • VOLTAGE :  460
Technical Drawings/Spec Sheets
View Documents General Arrangement
View Documents Pump data, curve and GA
View Documents Motor GA
View Documents Motor performance and curve
View Documents Motor Performance Data
ADDITIONAL DESCRIPTION

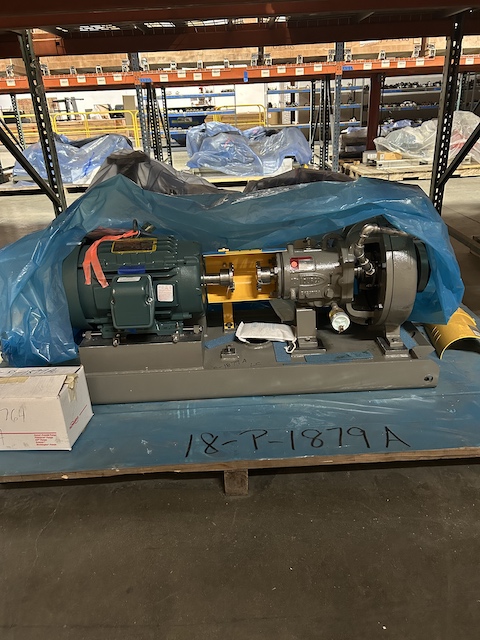

Unused Centrifugal Pump. Storm Water Tank Pump. Mfg. by Flowserve. Size 3x2x13.250 gpm @ 109.3' head. 250 psi @ 90 deg. F. Casing CS. Impeller 12 Cr. With 15 hp motor.
