114788 PUMPS-CENTRIFUGAL
  • ITEM NO :  114788
  • QTY :  1
  • ALLOY :  C
  • GPM :  500
  • FT HEAD :  480
  • PUMP CASE RPM :  3570
  • CASE MATERIAL :  CS
  • IMPELLER MATERIAL :  12 Cr
  • V/H :  H
  • MANUFACTURER :  SULZER
  • MODEL :  OHH
  • SIZE :  4X3X13
  • DRIVER TYPE :  MOTOR
  • HP :  100
  • RPM :  3570
  • VOLTAGE :  460
Technical Drawings/Spec Sheets
View Documents As Built Data Sheets
View Documents Aux Piping
View Documents Certified Performance Curves
View Documents Coupling
View Documents Mechanical Seal
View Documents Motor Dimensions
View Documents Motor Nameplate
View Documents Motor Performance Data
View Documents Motor Wiring
View Documents Predicted Pump Curve
View Documents Pump General Arrangement
View Documents Pump Nameplate
ADDITIONAL DESCRIPTION

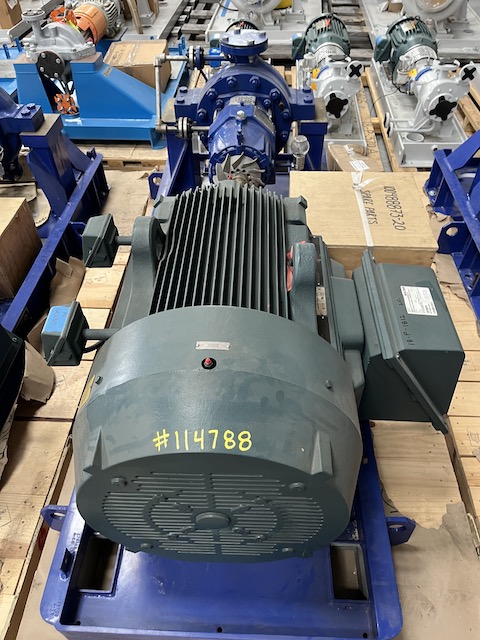

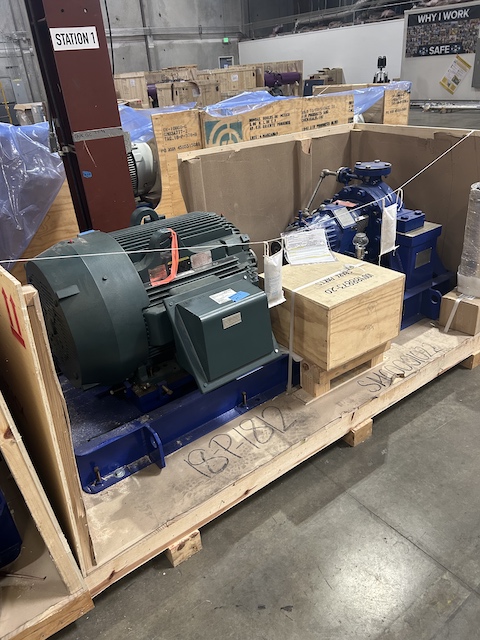

Unused Horizontal Centrifugal Pump. RJFU-B Startup Oil Pump. Mfg. by Sulzer. Size 3x4x13-1. 500 gpm @ 480' head. 705 psi @ 160 deg. F. Casing CS. Impeller 12 Cr. With 100 hp motor.
