114756 EXCHANGERS
  • ITEM NO :  114756
  • QTY :  1
  • ALLOY :  S
  • SQ.FT. :  1226
  • MATERIAL (S) :  304SS
  • MATERIAL (T) :  DUPLEX 2205
  • MATERIAL (H) :  DUPLEX 2205
  • PSI (S) :  174FV
  • PSI (T) :  174FV
  • TEMP. DEG. F (S) :  428
  • TEMP. DEG. F (T) :  428
  • TUBE DIAMETER IN" :  .75
  • TUBE LENGTH FT'IN" :  11'6"
  • TUBE HOLES :  544
  • TUBE WALL :  .062"
  • PASSES (S) :  1
  • PASSES (T) :  5
  • V/H :  V
  • CODE :  NB
  • TEMA TYPE :  BEM
  • SHELL NOZZLES :  (2)4"
  • TUBE NOZZLES :  (2)6"
  • NO. OF BAFFLES :  6
  • BAFFLE SPACING :  19.685"
  • SHELL DIAMETER FT'IN" :  2'2"
  • O.A.L FT'IN" :  16'6"
Technical Drawings/Spec Sheets
View Documents U-1
View Documents Inspection and Test Plan for Exchanger
View Documents Inspection Release Note
View Documents Drawing
View Documents General Arrangement
ADDITIONAL DESCRIPTION

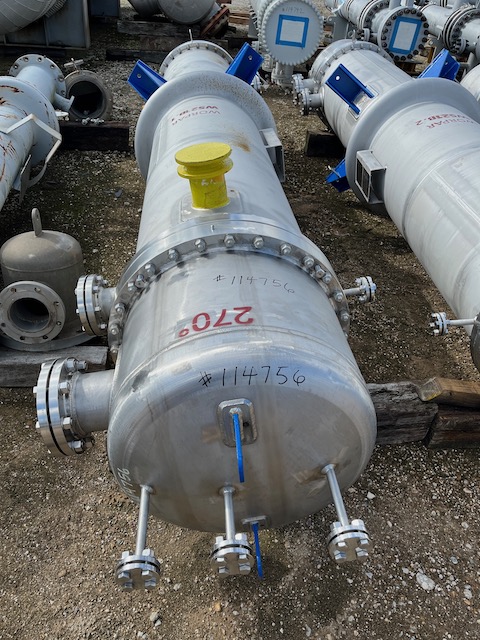

Unused 1226 sq. ft. stainless steel heat exchanger with expansion joint. Mfg. by WUXI Chemical Equipment (China) in 2021. Shell: 174FV psi @ 428 deg. F. Tubes: 174FV psi @ 428 deg. F.;Oil/Steam heat exchanger. Nitrogen Purge
